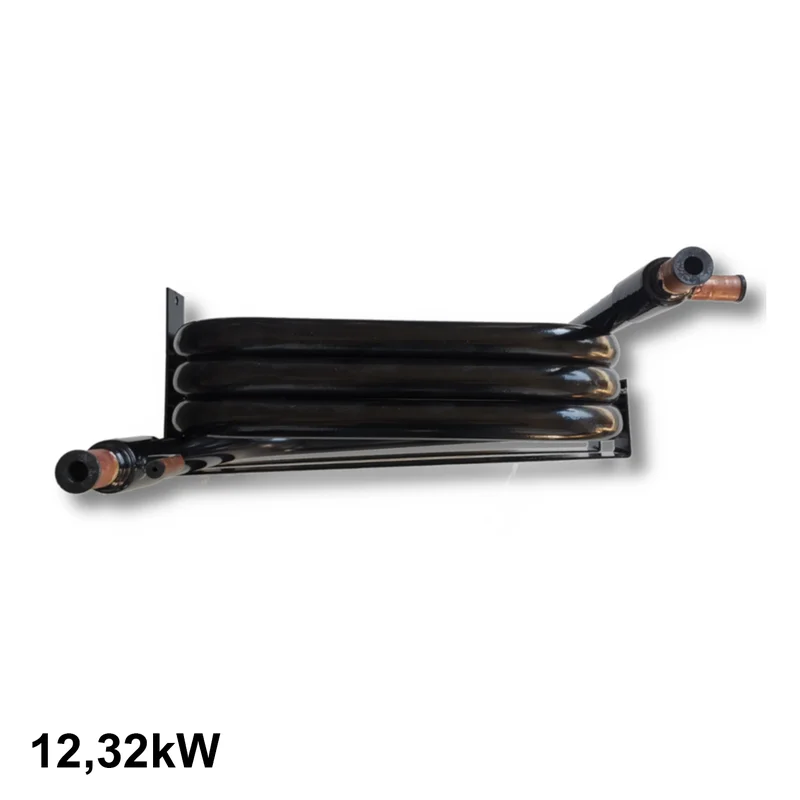

SR-BA-042-H – COAXIAL WATER CONDENSER 12.32 kW FOR REFRIGERATION SYSTEMS
Description:
A coaxial water condenser is a type of heat exchanger used in refrigeration systems. This device operates on the principle of condensation, the process of converting a gas into a liquid state by releasing heat.
Coaxial condensers are preferred for their thermal exchange efficiency and are used where space is limited, as their coaxial design allows for a smaller footprint compared to other condenser types.
The coaxial water condenser works by exploiting the thermal exchange principle between two fluids flowing in opposite directions within a coaxial tube. The tube consists of two concentric ducts: one inner and one outer. The fluid to be cooled (e.g., the gaseous refrigerant in a refrigeration system) flows inside the smaller tube, while water, acting as the cooling fluid, flows in the annular space between the two tubes.
During condensation, heat is transferred from the refrigerant to the water, causing the refrigerant to change from gas to liquid. This thermal exchange is made more efficient by the large contact surface between the two fluids and the counterflow direction, which maximizes the temperature gradient and thus heat transfer.
The main advantage of a coaxial condenser is its compactness and thermal exchange efficiency, making it ideal for applications where space is limited and high cooling capacity is required. Additionally, using water as the refrigerant fluid can be more convenient and sustainable in certain situations, especially where cooling water is readily available.
Dimensions:
Refrigerant: IN – OUT Ø 19.00 10.00 mm | 3/4 3/8
Water: IN – OUT Ø 25.00 25.00 mm | 1 1
Pressure:
Water: 1.0 Mpa
Refrigerant: 4.2 Mpa
A: 340 mm
B: 180 mm
C: 245 mm
D: 280 mm
E: 40 mm
F: 270 mm
Net weight: 12.50 Kg
Product code: SR-BA-042-H
