4-way valve cycle reversal heat pump – 3/8 / 5/16 – mm 8.1 / 9.7-Spedizione veloce

Descrizione

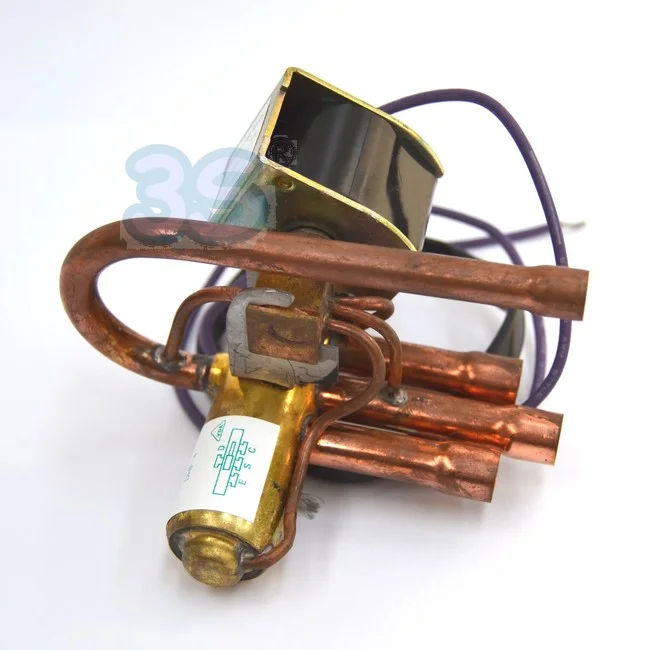

DSF-4 – 4-WAY SOLENOID VALVE
cycle reversing for refrigeration circuits
connections: 5/16″ 3/8″ mm 8.1 9.6

FEATURES:
– Reverses the refrigerant flow to enable both heating and cooling
– Used in room air conditioners, centralized and monoblock air conditioning systems
– Designed for heat pump systems with variable capacity depending on refrigerant type
– Supplied complete with coil
– Connections: Suction: 3/8 9.6 mm // Discharge: 5/16 8.1 mm
– For compressors: between 0.75 1.5 Hp
– Orifice size: 8 mm
– With R410A gas: Min kW: 1.95 // Max kW: 2.58
– Working pressure: Min: 0.25 bar // Max: 2.50 bar

Product code: DSF-4
