ASPIRVELO AIR ECOCOMFORT SAT 100 RF Fantini Cosmi

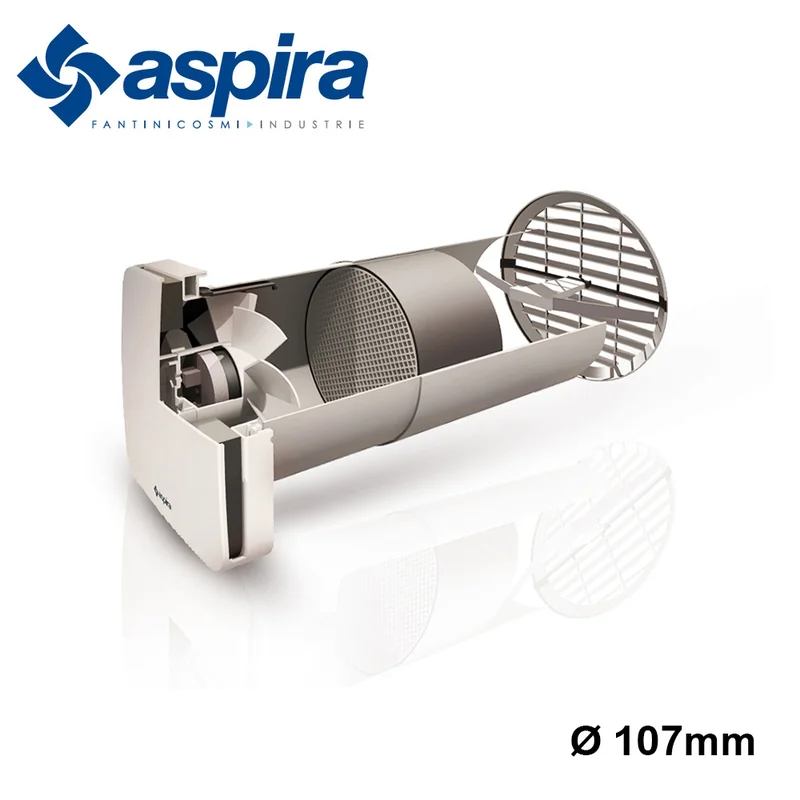

Compact single-room heat recovery unit with ceramic heat exchanger
ADDITIONAL MODULE WITHOUT CONTROL
Supplementary module WITHOUT CONTROL UNIT and WITHOUT TRANSFORMER; this model must be paired with kit AP19981 or AP19987 for proper operation.
DESCRIPTION:
The ECOCOMFORT-RF system consists of one or more decentralized ventilation units with very high-efficiency heat recovery to be installed on perimeter walls. A ceramic heat exchanger inside the units accumulates heat from the extracted air and returns it by heating the air during the intake cycle. The air entering the room passes through a G3 filter that traps any impurities. Each ventilation unit is equipped with a low-consumption DC brushless motor controlled by a microprocessor that processes information from sensors (temperature, humidity, and light) and commands from the remote control, adopting the most suitable ventilation modes to ensure optimal environmental comfort. The minimum installable configuration is the Master unit with its remote control, to which additional units can be added (up to a maximum of 64). The remote control, with a clear and intuitive graphic interface, allows users to set and adjust different operating modes and check current settings.
FEATURES:
– Plastics made of UV-resistant and anti-static ABS;
– Max ambient temperature 45°C;
– Compact size and ease of installation;
– Telescopic tube suitable for all wall thicknesses;
– Flexible external grille for mounting from inside or outside;
– G3 filter;
– Flow straightener for higher performance, only for 160 mm diameter version;
– Complies with Reg. (EU) 1254/2014.
THE PACKAGE INCLUDES:
– ‘Satellite’ ventilation unit with heat recovery and external grille;
ACCESSORIES AND SPARE PARTS:
– Additional ventilation unit;
– External air intake/extraction terminal;
– G3 filter;
Product code: AP19988
