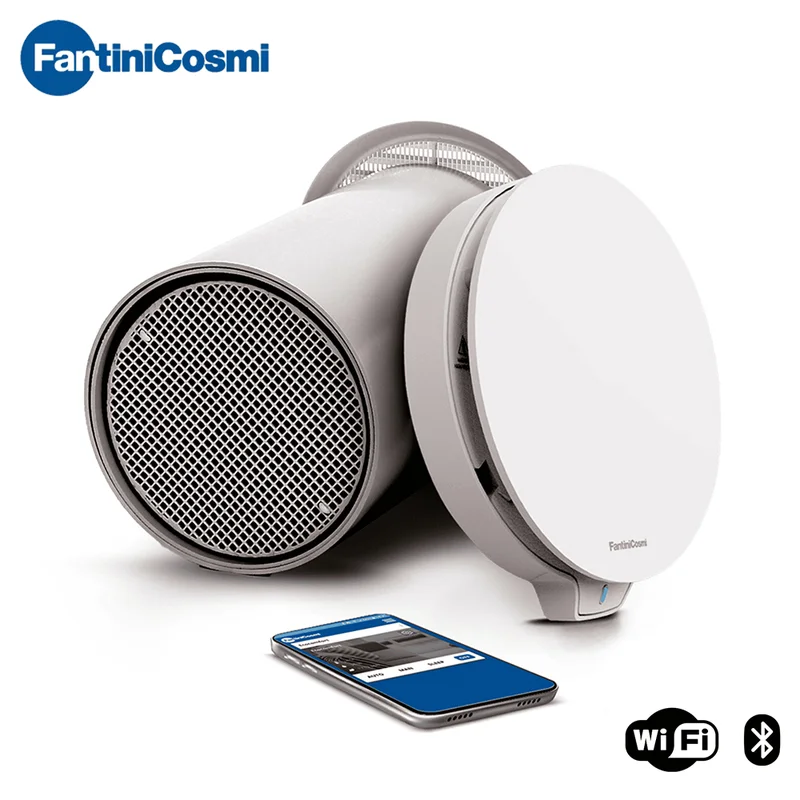

ASPIRA Fantini Cosmi – Ecocomfort 3 single-room MVHR with heat recovery and smart functions Description:
Ecocomfort 3 by Fantini Cosmi is a single-room MVHR unit with heat recovery designed to guarantee continuous air renewal in indoor environments without opening windows, preventing the formation of humidity and mould and improving living comfort. The heart of the system is the high-efficiency regenerative ceramic heat exchanger, capable of recovering up to 90% of the heat from the extracted air and transferring it to the incoming air, reducing energy losses and heating costs.
Thanks to the low-consumption DC brushless motor and the integrated temperature, humidity, air quality (iAQ) and twilight sensors, the unit automatically adapts ventilation to the actual room conditions, choosing the most suitable mode to guarantee healthy air and optimal comfort. The ISO Coarse filter retains impurities from the incoming air, helping to keep rooms cleaner and protect surfaces from condensation and mould.
WiFi and Bluetooth Low Energy 5.0 multi-connectivity allows complete management via the Intelliclima+ app, with which it is possible to configure manual, automatic and smart modes, monitor temperature, humidity, air quality and consumption, as well as integrate Ecocomfort 3 into a smart home ecosystem with programmable thermostats and other Fantini Cosmi devices. Installation on perimeter walls with telescopic pipe and expandable external grille makes assembly quick and flexible, even with ducts up to 3 metres.
Features:
Single-room MVHR with high-efficiency regenerative ceramic exchanger for heat recovery up to 90%.
Integrated temperature, humidity, air quality (eCO2/iAQ) and twilight sensors for automatic comfort management.
Smart management via Intelliclima+ app with 2.4 GHz WiFi and Bluetooth Low Energy 5.0 multi-connectivity, also remotely.
Manual, automatic, smart sensor, night sleep, summer free-cooling operating modes and geolocation function.
ISO Coarse filter for incoming air treatment, prevention of mould and humidity and improved indoor air quality.
Installation on perimeter walls with telescopic pipe and foldable external grille for assembly from inside.
Possibility of configuration as main or additional unit, with communication between units via Bluetooth and synchronized management from the app.
Advanced reporting functions on temperature, humidity, air quality and consumption trends directly from smartphone.
Specifications:
Pipe diameter: DN 160 mm; installation on perimeter walls with shockproof PVC telescopic pipe for wall thicknesses from 230 mm to 530 mm (with AP19881 noise reduction kit minimum thickness 430 mm); unit dimensions: A 230 mm, A1 250 mm, B 55 mm, C 280530 mm, D1 154 mm (Ø external) / 150 mm (Ø internal), D 160 mm (Ø external) / 156 mm (Ø internal), E 20 mm, F 190 mm.
Power supply: 110230 Vac ~ 50/60 Hz; low-consumption DC brushless motor controlled by microprocessor; protection rating: IPX4; operating temperature: from -20°C to +50°C; anti-UV and antistatic ABS plastics; panel for acoustic, thermal and anti-condensation insulation.
Air flow rate: Speed 1 = 30 m³/h, Speed 2 = 50 m³/h, Speed 3 = 75 m³/h, Sleep speed (night) = 15 m³/h, boost speed (*) = 100 m³/h; alternating intake/extraction flow operation with 45 s cycles and timed intake-only or extraction-only modes (60 min).
Power input: Speed 1 = 3 W, Speed 2 = 5 W, Speed 3 = 8 W, Sleep speed = 2,5 W, boost speed (*) = 20 W; heat recovery efficiency up to 90%; automatic summer free-cooling function when the outdoor temperature is lower than the indoor temperature.
Noise level (sound pressure): at 1.5 m Speed 1 = 20,5 dB(A), Speed 2 = 29,5 dB(A), Speed 3 = 37,0 dB(A), boost speed (*) = 45,8 dB(A); at 3 m Speed 1 = 15,0 dB(A), Speed 2 = 23,5 dB(A), Speed 3 = 31,5 dB(A); values for Sleep mode not declared (n.d.).
Filtration: ISO Coarse class filter according to UNI EN ISO 16890:2017; energy class A according to Regulation (EU) no. 1254/2014; unit ductable up to 3 linear m or 2.5 m with one bend; communication between units via Bluetooth Low Energy with signal range of approx. 810 m in open environment.
Connectivity: 2.4 GHz WiFi, Bluetooth Low Energy 5.0, remote firmware update via app; management via Intelliclima+ app with geolocation, auto smart sensor, remote control and environmental parameter reporting functions.
AP19996 package contents: indoor unit with magnetic front cover, ventilating cartridge with heat recovery unit and sanitizing system, telescopic pipe, external grille, instruction manual; accessories and spare parts: ISO Coarse filter AP1984 (FR007), insulating panel AP1985 (FR008), rainproof and windproof grille AP1613 (GE150), external noise reduction kit AP19881 (SLF160); compliance with Directive 2014/53/EU (RED), Directive 2009/125/EC (ERP Ecodesign 2018) and EN/ETSI standards indicated by the manufacturer.
Product code: AP19996
