Descrizione

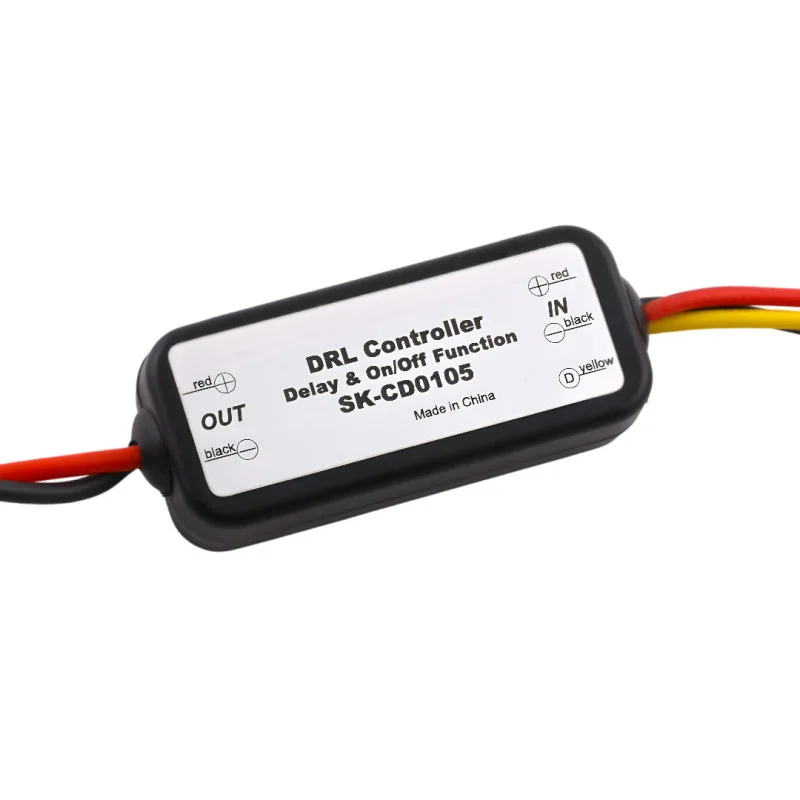

The SK-CD105 is an intelligent control module designed for eagle eye LED daytime running lights (DRL) or other LED DRL modules. It offers automatic DRL on/off functions when the low beam is turned on and a practical departure mode with a delay after the engine is turned off. It protects the car battery by monitoring the voltage and allows for easy installation without complex electronics.
Technical specifications
Model: SK-CD105
Operating voltage: 12 18 V DC
Working current: up to 5 A
Starting voltage threshold: 13 V
Voltage cut-off threshold: < 12.5 V
Exit mode duration: approx. 15 s
Maximum power of connected DRLs: 18 W (pair)
Brightness control method: PWM (when connecting the yellow wire)
Installation: vehicle interior, protected from moisture
Functions and features
Automatic DRL lighting when the engine is started if the voltage reaches 13 V.
Automatic DRL shutdown when voltage drops below 12.5 V, with the option to extend the lighting time if voltage remains higher.
Departure mode DRLs remain on for approximately 15 seconds after the engine is turned off for safe exit from the vehicle.
Possibility to dim the DRL to half brightness when turning on the dipped beam or reading lights (by connecting the yellow wire).
The SK-CD105 model allows you to completely turn off the DRL when turning on the low beams.
Easy installation directly on the vehicle battery with integrated fuse.
Ideal for
Passenger cars
Deliveries
Motorcycles (with 12V installation)
LED eagle eye daytime running lights, LED strips, LED DRL modules
Package contents
1× LED DRL automatic switching unit SK-CD105
Installation wires with fuse
Quick start guide (EN/CZ)
Why choose this product?
Fully automatic DRL control without driver intervention.
Car battery protection thanks to low voltage shutdown.
Increased security thanks to exit mode with delayed switch-off.
Easy installation even for the average user.
Possibility to choose between dimming or completely turning off the DRL when turning on the low beams.
