Descrizione

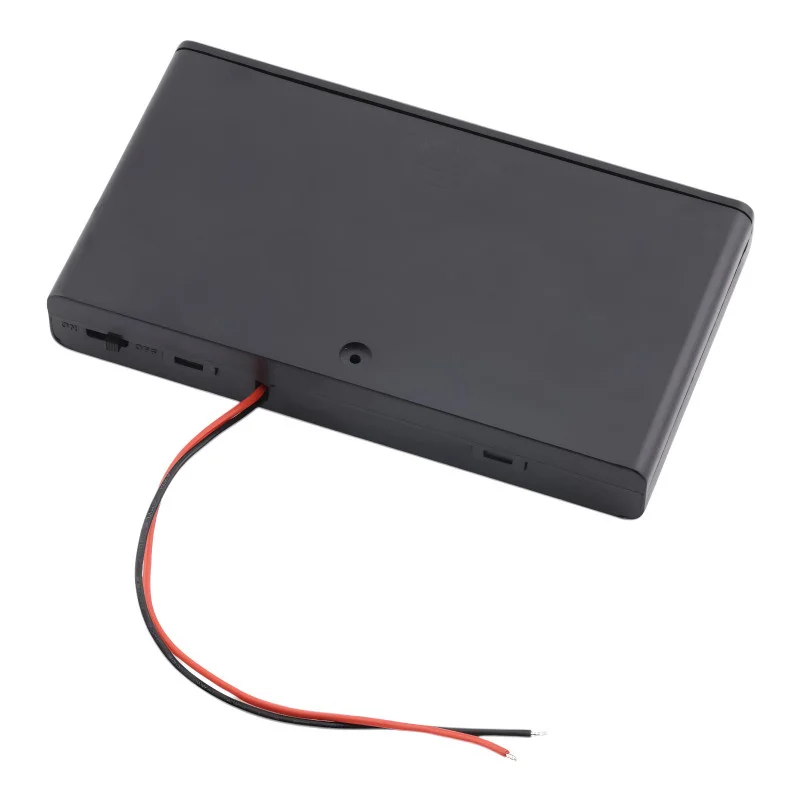

The battery box is designed to store and connect eight AA cells in series. It serves as a practical battery holder for powering electronic projects, prototypes and devices requiring an external battery source. The design includes a protective cover, lead wires and a slide switch for disconnecting the power supply without having to remove the batteries.
Technical specifications
Product type: battery box
Designed for: 8x AA batteries
Nominal cell connection: series
Rated voltage: 12 V
Integrated element: ON/OFF slide switch
Connection: lead wires
Version: with lid
Material: plastic and metal
Color: black
Dimensions: 127 x 72 x 19 mm
Wire length: 14.5 cm
Batteries are not included.
Functions and features
Allows mechanical storage of eight AA cells in one case.
A slide switch allows you to disconnect the power without disconnecting the wires.
The lid helps protect the inserted batteries from accidental release.
Lead wires allow direct connection to an electronic circuit or device.
The compact flat design is suitable for installation in project boxes and power supply assemblies.
Ideal for
power supply for electronic projects and prototypes
robotics and modeling applications
DIY construction and development kits
replacement or addition of battery power in devices with external power supply
Package contents
1x battery box for 8x AA with lid, wires and switch
Why choose this product?
The design combines the battery holder, output wires and switch in one unit.
Designed for assembling a battery power source from commonly available AA cells.
The lid improves the mechanical securing of the batteries during operation and handling.
Suitable for applications where battery power with manual disconnection is required.
Installation and operating instructions
Insert only AA batteries with the correct polarity as marked in the box.
Use batteries of the same type, charge level and production series at the same time.
Before connecting to the device, verify the correct polarity of the output wires and the required voltage of the supplied circuit.
When replacing the batteries, first turn the power switch to the off position and disconnect the box from the device.
Safety notice
Incorrect battery insertion or short circuiting the terminals may cause heating, damage to the box, or damage to the connected device.
Do not mix new and used batteries or different cell chemistries.
Protect the output wires and contacts from short circuits and mechanical damage.
The product is not intended for direct connection to mains voltage.
If built into a device, ensure sufficient protection against battery displacement and strain on the wires.
