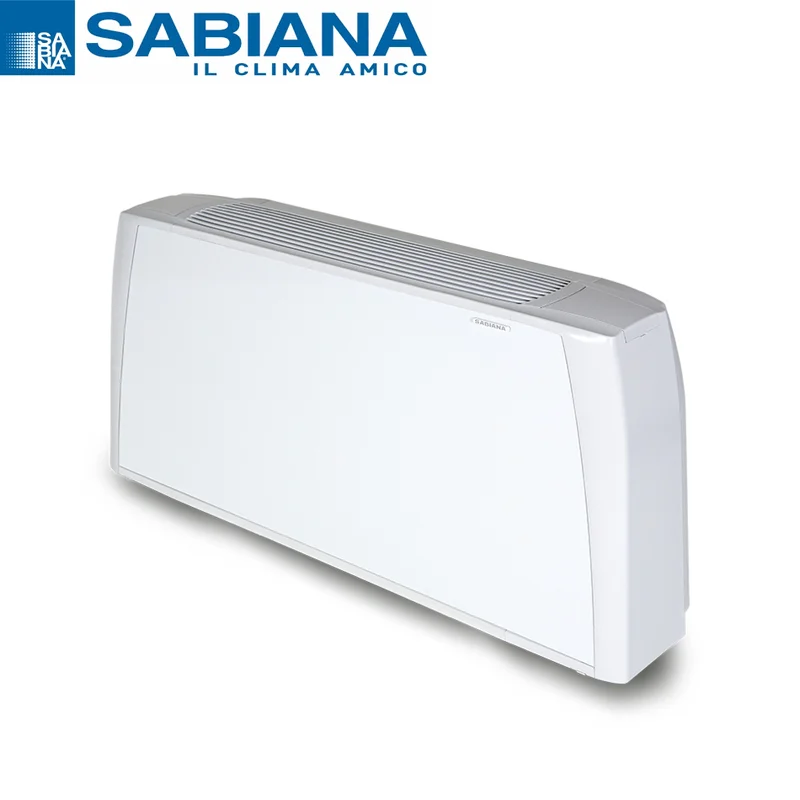

Carisma CRC 44 MV Cooling 3.08 kW – Heating 3.14 kW
Centrifugal Fan Coil with 4 Rows
Description:
The range includes 9 sizes (from 105 to 1500 m³/h) and 5 versions (wall-mounted and ceiling-mounted, exposed and recessed), each equipped with thermal exchange coils with 3 or 4 rows, and the option to add a 1 or 2-row coil for four-pipe systems.
This is the most comprehensive range, perfectly suited to meet all climate control needs for workplaces such as offices, shops, restaurants, and hotel rooms with ducted installations with pressure drops up to 50 Pa.
Technical Features:
– Casing: Consists of robust side panels in impact-resistant synthetic material (ABS) and a front section in hot-dip galvanized and pre-painted steel sheet. The air supply grille, made of synthetic material, is reversible with fixed blades and is positioned on the top.
Standard Colors:
– Side panels and air supply grille: Pantone Cool Grey 1C (light grey)
– Front section: RAL 9003 (white)
– Other colors available upon request.
Support Structure: Made of 1 mm thick galvanized sheet, consisting of two side panels and a rear wall insulated with a 3 mm thick closed-cell polyethylene mat, Class M1.
Filter: Reusable polypropylene honeycomb filter. The frame, made of galvanized sheet, is inserted into guides fixed to the internal structure, allowing easy removal. A front cover for the filter, made of plastic in the same color as the air supply grille, highlights its presence.
Fan Unit: Composed of particularly quiet double-inlet centrifugal fans with aluminum or plastic impellers, statically and dynamically balanced, directly mounted on the motor shaft.
Electric Motor: Single-phase type with six speeds (three connected), mounted on anti-vibration elastic supports with a permanently installed capacitor, internal thermal protection with automatic reset, IP 20 protection class, and class B.
Thermal Exchange Coil: Made with copper tubes and aluminum fins attached to the tubes by mechanical expansion. The main coil and any additional coil have two Ø 1/2 female gas connections. The collectors are equipped with air vents and Ø 1/8 gas water drains. The exchanger is not suitable for corrosive environments or environments where corrosion of aluminum may occur. The coils are reversible: the connection side can be inverted during installation on site.
Condensate Collection Tray: Made of plastic, shaped like an L and fixed to the internal structure; in the MO-MVB and IV-IO versions, the tray is insulated with a 3 mm thick closed-cell polyethylene mat, Class M1. The condensate drain pipe has an external diameter of Ø 15.
Product Code: 0066014
