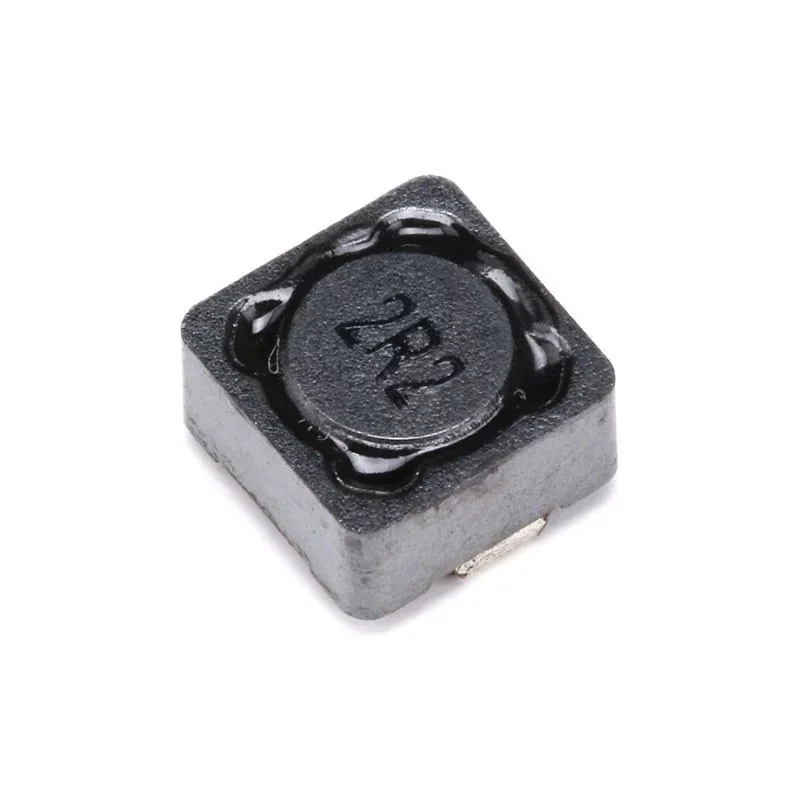

SMD power choke CDRH74
The CDRH74 series SMD power choke is designed for switching power supplies, DC/DC converters and filter circuits. The shielded design with ferrite core ensures low electromagnetic interference, high current carrying capacity and stable parameters in a wide range of inductances.
Technical specifications
Construction: shielded power choke
Mounting: SMD
Dimensions: 7.5 × 7.5 × 4.5 mm
Weight: 1.6g
Inductance tolerance: ±20%
Test frequency: 100 kHz / 0.3 V
Operating temperature: 40 °C to +85 °C
Storage temperature: 55 °C to +125 °C
Insulation resistance: 100 M
Protection: IP00
Overview of available CDRH74 variants
| CDRH74-1R0M | 1 | 0.017 | 8.0 | 5.0 |
| CDRH74-2R2M | 2.2 | 0.024 | 6.0 | 4.0 |
| CDRH74-3R3M | 3.3 | 0.030 | 4.8 | 3.5 |
| CDRH74-4R7M | 4.7 | 0.040 | 4.2 | 3.1 |
| CDRH74-6R8M | 6.8 | 0.050 | 2.8 | 2.2 |
| CDRH74-100M | 10 | 0.065 | 2.5 | 1.84 |
| CDRH74-150M | 15 | 0.090 | 2.0 | 1.47 |
| CDRH74-220M | 22 | 0.130 | 1.8 | 1.23 |
| CDRH74-330M | 33 | 0.160 | 1.5 | 0.96 |
| CDRH74-470M | 47 | 0.230 | 1.3 | 0.88 |
| CDRH74-560M | 56 | 0.250 | 1.2 | 0.8 |
| CDRH74-680M | 68 | 0.310 | 1.1 | 0.7 |
| CDRH74-101M | 100 | 0.430 | 0.9 | 0.6 |
| CDRH74-121M | 120 | 0.600 | 0.8 | 0.5 |
| CDRH74-151M | 150 | 0.700 | 0.7 | 0.46 |
| CDRH74-221M | 220 | 0.950 | 0.5 | 0.35 |
| CDRH74-331M | 330 | 1,350 | 0.4 | 0.32 |
| CDRH74-471M | 470 | 2,200 | 0.35 | 0.26 |
| CDRH74-681M | 680 | 2,700 | 0.3 | 0.2 |
| CDRH74-102M | 1000 | 4,300 | 0.28 | 0.18 |
| CDRH74-152M | 1500 | 4,500 | 0.1 | 0.1 |
Functions and features
Shielded design to reduce EMI
Low DC winding resistance
High saturation current resistance
Suitable for high-frequency switching circuits
Ideal for
DC/DC converters
Switching power supplies
LED drivers
Filtering and smoothing circuits
Package contents
1× SMD power choke CDRH74
Why choose this product?
Complete range of inductors in one package
Technical parameters directly according to the production datasheet
High reliability and mechanical resistance
