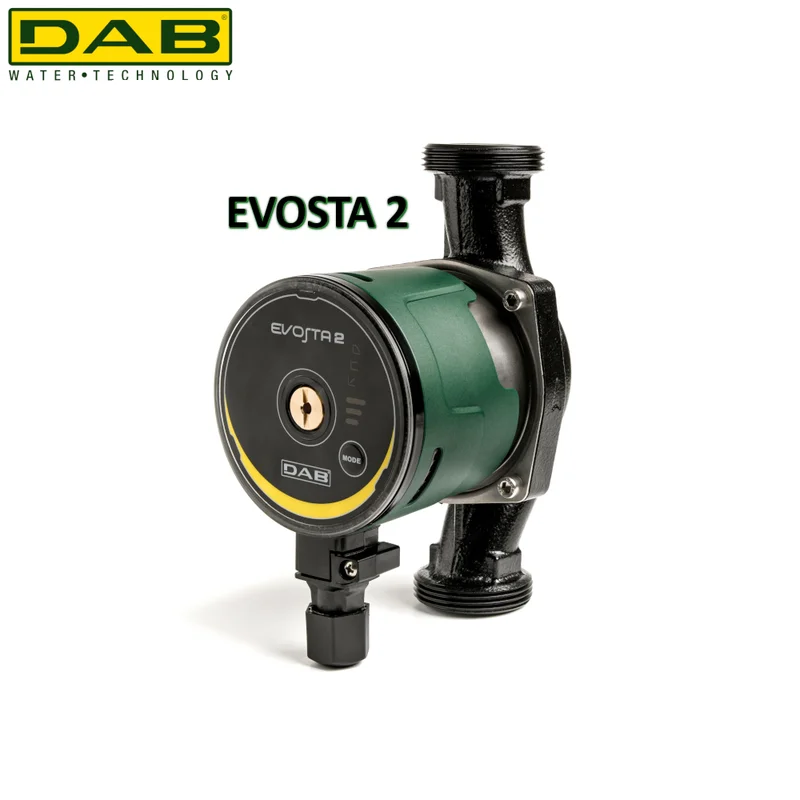

60185492 – WET ROTOR CIRCULATOR – DAB EVOSTA 2 40-70/180
For heating/air conditioning 1 union connection 11/2
General features:
For heating systems, solar panel systems, domestic hot water recirculation, and air conditioning systems, Evosta 2 circulators offer high standards of reliability and comfort, performance and low energy consumption, ease of use, and maintenance.
Description:
Evosta 2 by DAB is a wet rotor electronic circulator designed for water recirculation in small heating and cooling systems in domestic and residential settings.
Evosta 2 features a synchronous motor with permanent magnets and inverter electronics that automatically adapt performance to the system’s demands, enabling energy savings and protection against water hammer.
Evosta 2 is easy to configure: a sequential button allows users to scroll through the nine operating modes:
Three proportional pressure modes
Three constant pressure modes
Three constant speed modes
All models are equipped with a vent plug and allow manual unlocking of the motor shaft. Suction and delivery ports are threaded.
Technical data:
Operating range: 0.43.6 m³/h with head up to 6.9 meters
Liquid temperature range: from -10 °C to +110 °C
Operating pressure: 10 bar (1000 kPa)
Protection rating: IPX5
Insulation class: F
Installation: with horizontal motor shaft
Standard power supply: single-phase 1×230 V~ 50/60 Hz
Pumped liquid: Clean, free of solid substances and mineral oils, non-viscous, chemically neutral, similar to water (glycol max. 30%)
Product code: 60185492
