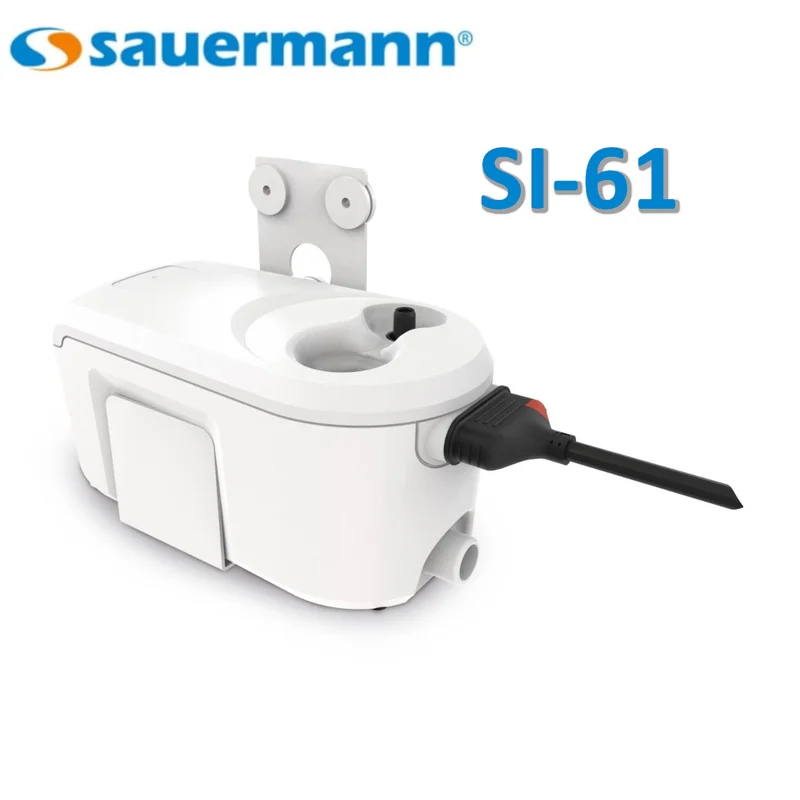

Condensate Pump Si-61
For Condensing Boilers up to 50 kW
Piston Type with Tank
Description:
The Si-61 is a piston pump, ideal for residential environments, with an integrated tank (0.37 L) designed to remove acidic condensate from condensing boilers up to 50 kW.
Sauermann® technology enables particulate removal, and the innovative float ensures reliability for condensing boilers. Its white color, compact size, and low noise level make it suitable for installation in kitchens.
Technical Details:
– Maximum Flow Rate: 10 l/h
– Maximum Head: 4 m
– Maximum Pressure: 8 m
– Insulation Class: Double insulation
– Electrical Supply: 230 V~ 50/60 Hz – 10W
– Operating Conditions: 100% continuous
– Protection: IPX4
– Color: White
– Tank Volume: 0.37 L
– Main Package: 5
– Safety Switch: NC: 4 A resistive 250 V
– Detection: ON: 28 mm / OFF: 24 mm / Safety: 35 mm
Advantages:
– Patented technology
– High performance and capacity reduce operating time and energy consumption
– Proven reliability
– Higher discharge heights
– Easy to install
– Designed for intuitive installation
– Compact size
– Lockable plug-in power cable to prevent accidental disconnection
– 0.37 L tank for collecting acidic condensate from condensing boilers
– Resistant to pollution
– Acid-resistant
– Capable of removing small particles
– Robust float with shaft rotation out of water
– IPX4 rated for enhanced protection of mechanical and electrical parts
– Suitable for residential spaces
– White color
– Compact size
– Low noise level with wall-mounting anti-vibration bracket with rubber dampers
Kit Contents:
– Piston pump with 0.37 L tank
– Integrated float detection unit
– 1.5 m plug-in power cable, 2 power wires, 2 safety contact wires
– Rubber inlet adapter Ø int. 15-20-24-32-40 mm (Ø int. 5/8-3/4-1-1¼-1½)
– 5 m of tubing (Ø int. 6 mm – 1/4)
– Safe drainage system
– Self-sealing discharge fitting
– Double-wire spring clip (x4)
– 2 screws, 2 plugs
Product Code: SI61CE02UN23
