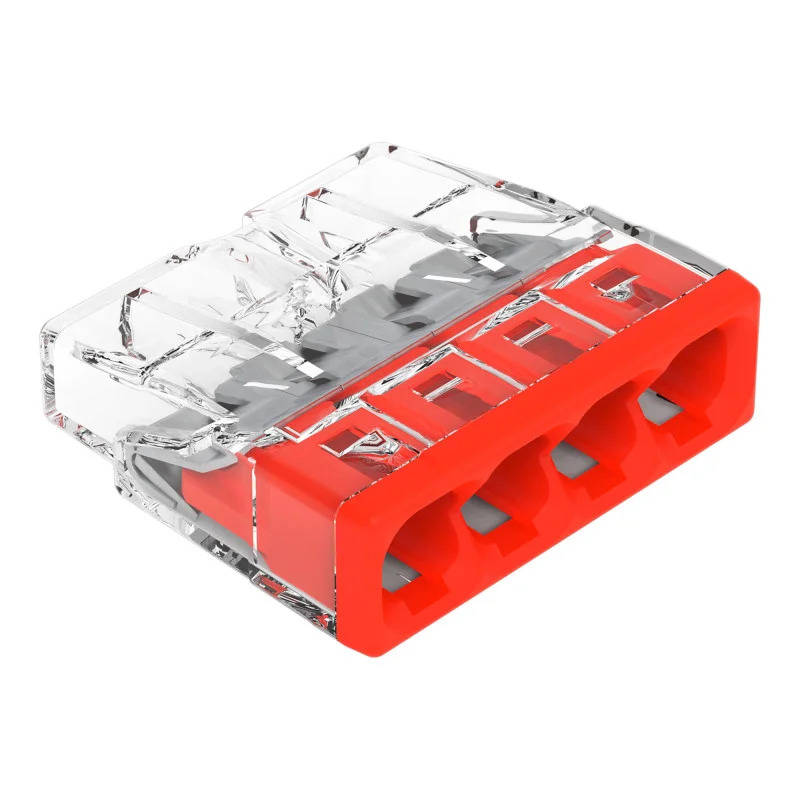

The WAGO 2273 PUSH WIRE installation terminal is designed for quick connection of solid conductors by direct insertion without the use of tools. The design with 4 connection points is suitable for electrical installation connections in confined spaces, where a compact solution and clear control of the conductor insertion are required.
Technical specifications
Product type: connecting clamp
Series: WAGO 2273
Connection technology: PUSH WIRE
Number of connection points: 4
Number of potentials: 1
Control method: direct insertion
Designed for solid conductors
Conductor cross-section: 0.52.5 mm2
AWG: 2016
Stripping length: 11 mm
Connection direction: lateral
Material of connectable conductors: copper, aluminum
Rated voltage: 450 V
Rated current: 24 A
Rated impulse voltage: 4 kV
Ambient air temperature during operation: up to +60 °C
Continuous operating temperature: 105 °C
Temperature designation according to EN 60998: T60
Insulation material: polycarbonate (PC)
Body color: transparent
Cover color: red
Flammability class according to UL94: V2
Material group: IIIa
Clamp dimensions: 18 x 5.8 x 16.7 mm
Weight of one clamp: 1.3 g
Functions and features
Compact design for use in installation boxes and other confined spaces
Spring connection technology enables quick and repeatable wire insertion
Transparent housing allows visual inspection of correct wire insertion
Test hole allows measurements in installed condition
Designed for connecting solid conductors at one potential
Ideal for
Electrical wiring in installation boxes
Connecting fixed conductors in internal distribution systems
Repairs and modifications of fixed electrical installations
Installations where quick screwless wire connections are required
Package contents
1x WAGO 2273 PUSH WIRE installation terminal, 4 wires
Why choose this product?
Known and unambiguous technical parameters for solid conductors in the range of 0.52.5 mm2
Four connection points in a compact body
Direct wire insertion simplifies assembly without screwing
Transparent design makes it easy to check connections during installation
The parameters of nominal voltage, current and temperature resistance correspond to use in electrical installations
Installation and operating instructions
Use only for solid conductors within the specified cross-section range
Strip the wire to a length of 11 mm and insert it straight in until it stops.
Before commissioning, check that the wire is fully inserted through the transparent housing.
The functionality of the connection can be verified via the test hole
Safety notice
The product is intended for electrical installations with voltages up to 450 V.
Only carry out installation and interventions when the power supply is disconnected.
Incorrect wiring may lead to short circuit, overheating or electric shock.
Observe the specified wire type and the prescribed cross-section range.
Installation in fixed electrical installations should be carried out by a person with appropriate professional qualifications.
