General

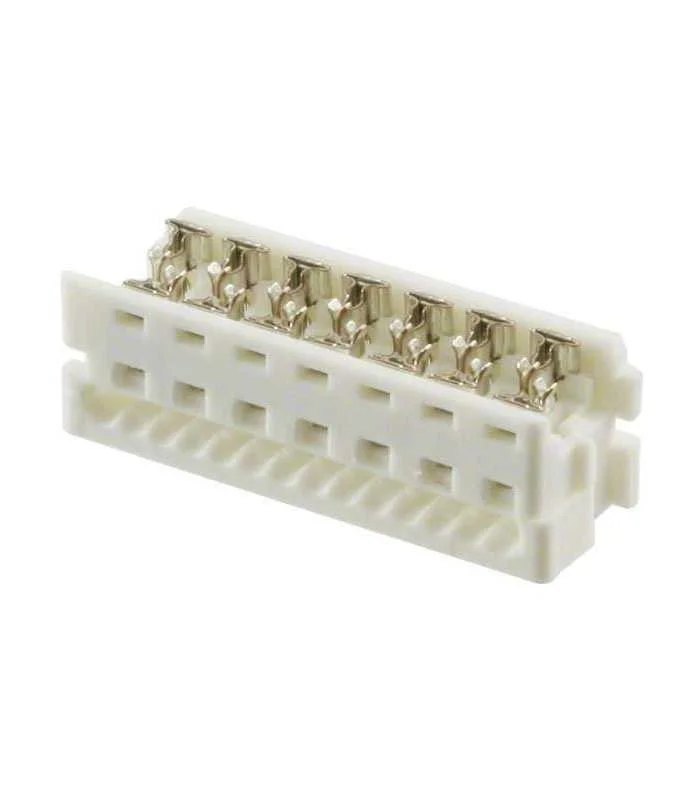

Category: Ribbon Cable / Wire Trap Connectors
Product Name: Picoflex®
Series: 90327
Comments: Low Profile
Component Type: Housing
Glow-Wire Compliant: No
Physical
Circuits (Loaded): 14
Circuits (maximum): 14
Color – Resin: White
Durability (mating cycles max): 30
Entry Angle: Vertical
Flammability: 94V-0
Lock to Mating Part: Yes
Material – Metal: Phosphor Bronze
Material – Plating Mating: Tin
Material – Plating Termination: Tin
Material – Resin: Polyester
Net Weight: 0.828/g
Number of Rows: 2
PCB Locator: No
PCB Retention: None
Pitch – Mating Interface: 1.27mm
Pitch – Termination Interface: 1.27mm
Polarized to Mating Part: Yes
Polarized to PCB: No
Shrouded: Fully
Stackable: No
Surface Mount Compatible (SMC): N/A
Temperature Range – Operating: -40°C to +105°C
Termination Interface: Style: IDT or Pierce
Wire Insulation Diameter: 1.00mm max.
Wire Size AWG: 26, 28
Wire/Cable Type: Ribbon Cable
Electrical (Please review the Product Specification for specific details.)
Current – Maximum per Contact: 1.2A
Voltage – Maximum: 250V
Agency Certification
CSA: LR19980
UL: E29179
