Descrizione

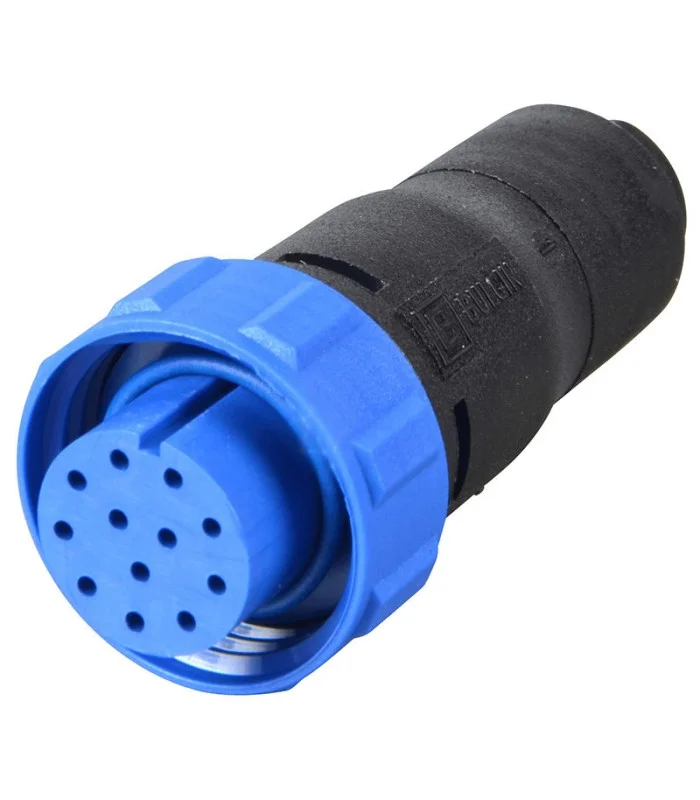

Connector Type: Circular Industrial
Series: Micro Buccaneer
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Positions: 12
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 6.5mm
Cable Diameter Min: 6.0mm
Contact Resistance: 5mohm
Current rating: 1A
Flammability rating: UL94V-0
IP / NEMA rating: IP68
Insulation Resistance: 10Mohm
O Ring Material: Nitrile
Operating Temperature Max: 80°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 50V
Wire Size AWG Max: 24AWG
Wire Size AWG Min: 28AWG
Working Voltage: 50V
