Descrizione

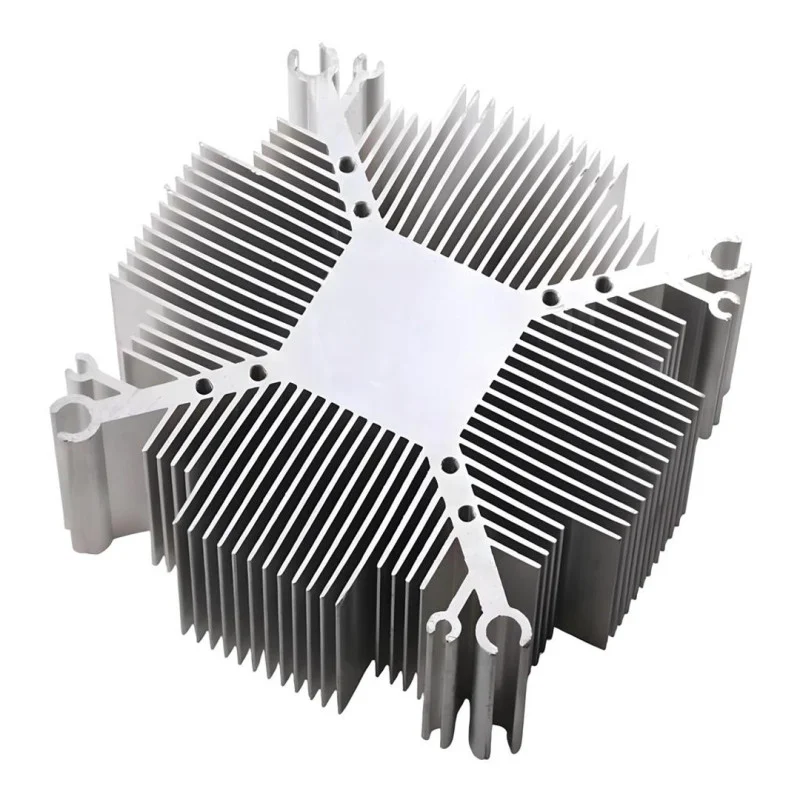

Aluminum heat sink designed for effective cooling of powerful SMD LEDs up to a maximum power of 100 W. Thanks to its compact dimensions, high thermal conductivity and prepared mounting holes, it is ideal for professional and hobby LED applications, where the emphasis is on reliable heat dissipation and long service life of LED chips.
Technical specifications
LED Type: SMD/COB LED
Recommended LED power: 20 W, 30 W, 50 W, 80 W, 100 W
Maximum LED power: 100 W
Material: aluminum
Thermal conductivity: 226 W/m K
Heatsink dimensions: 92 × 92 × 40 mm
LED center size: 32 × 32 mm
LED mounting hole spacing: 33.3 × 33.3 mm and 46 × 46 mm
Fan mount: 90 mm
Weight: 235g
Protection: IP20
Functions and features
High heat dissipation efficiency thanks to solid aluminum construction
Prepared mounting holes for common SMD LED modules
Possibility to install a 90mm fan for active cooling
Suitable for long-term operation with proper cooling
Compact dimensions suitable even for smaller luminaires
Ideal for
Powerful LED spotlights
Industrial and technical LED lighting
Plant and grow LED lights
DIY projects with SMD and COB LED chips
Package contents
1× aluminum heatsink
4× stainless steel screw M3 × 10 mm
Why choose this product?
Optimized heat sink for LEDs up to 100 W
Passive and active cooling options
Precise dimensions and compatibility with common LED modules
High thermal conductivity for maximum LED life
To operate a 100W LED, it is necessary to equip the cooler with a suitable fan.
