Copper branch joint for DAIKIN 37T VRV / VRF system-Spedizione veloce

MODEL

LINE

A

B

C

22T

Steam

19.05 / 15.88 / 12.70

19.05 / 15.88

15.88 / 12.70

Liquid

9.52

9.52 / 6.35

9.52 / 6.35

33T

Steam

19.05 / 22.22

19.05 / 15.88

15.88 / 12.70

Liquid

12.70 / 9.52

9.52 / 6.35

9.52 / 6.35

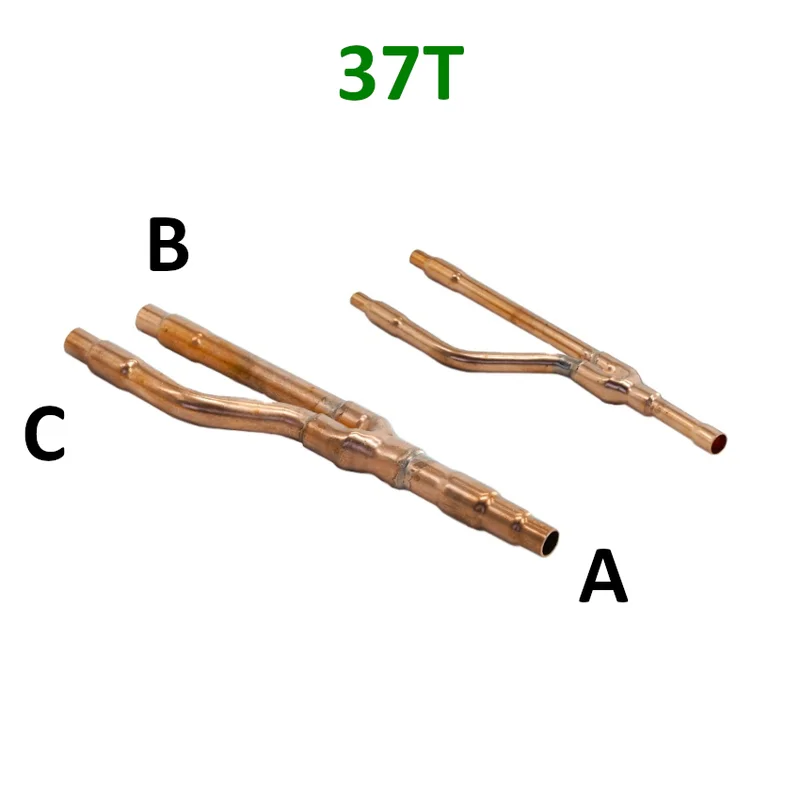

37T

Steam

25.4 / 28.58 / 31.80

25.40 / 19.05 / 15.88

19.05 / 15.88 / 12.70

Liquid

12.70 / 15.88

12.70 / 9.52

12.70 / 9.52 / 6.35

40T

Steam

31.80 / 38.10

31.80 / 28.58 / 25.40

25.40 / 19.05 / 15.88

Liquid

19.05 / 15.88

19.05 / 15.88 / 12.70

15.88 / 12.70 / 9.52
