Descrizione
The D-SUB DE15 connector (often incorrectly referred to as DB15/VGA) allows for quick, solderless wire connections using screw terminals. It is suitable for service, prototyping, and wiring conversion to a standard 15-pin male interface with locking screws.
Technical specifications
Connector type: D-SUB DE15 (15 pins, 3 rows), male
Fixing: locking screws on the connector
Wire connection: screw terminal block
Dimensions: 76 × 42 × 20 mm
Pitch between pin rows: 2.84 mm
Horizontal pin pitch in a row: 2.77 mm
Material: metal connector, plastic cover (ABS)
Functions and features
Converting DE15 connector to terminal block for easy connection of individual signals
Solderless assembly, suitable for repeated wiring changes
ABS cover protects terminals and wires against mechanical damage
Locking screws improve the mechanical stability of the connection with the counterpart
Ideal for
Service and test fixtures for devices with DE15 interface
Prototyping and laboratory wiring of signal lines
Connecting cabling to D-SUB without manufacturing a special cable
Industrial and measurement applications using 15-pin D-SUB interface
Package contents

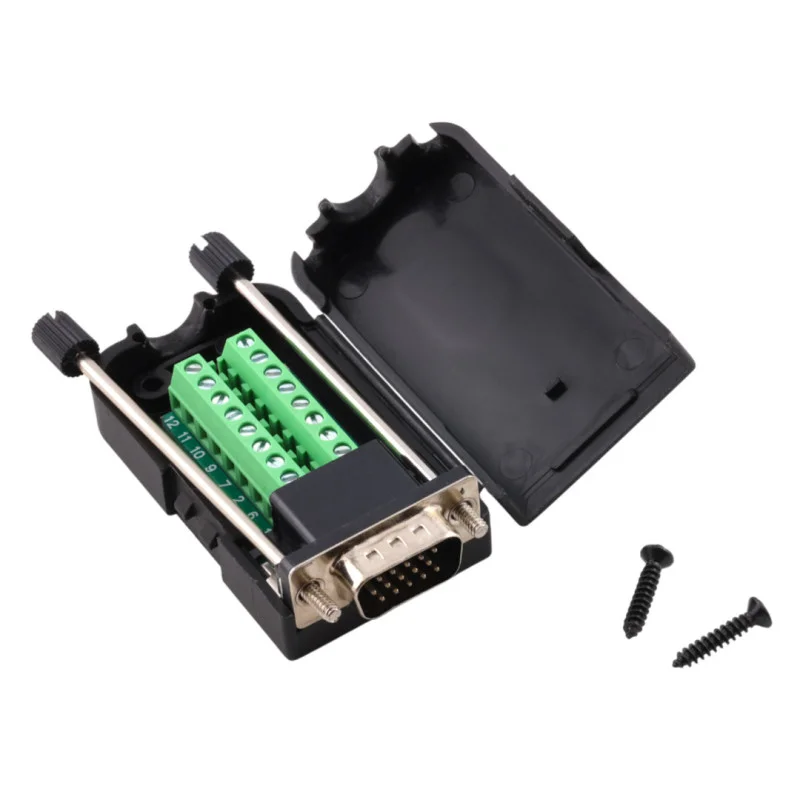

D-SUB DE15 male with terminal block in housing
Why choose this product?
Technically correct DE15 design (15 pins in 3 rows) for compatibility with common counterparts
Quick and clear wiring via screw terminals
Compact dimensions and mechanical locking of the connector with screws
Suitable solution for temporary and more permanent installations without soldering
Installation and operating instructions
Before connecting the wires, loosen the terminal screws, insert the stripped wire and tighten the screw with adequate force.
We recommend verifying the pin assignment according to your application and device wiring diagram.
After connecting the wires, close the cover and secure it with the included screws.
When connecting to the mating piece, tighten the connector locking screws for stable contact.
Safety notice
The product is intended for signal and low voltage applications; do not use it for direct connection to mains voltage.
Before handling, disconnect the device from the power supply and prevent short circuits between the terminals.
Ensure strain relief for the cabling so that the wires do not come loose in the terminals.
