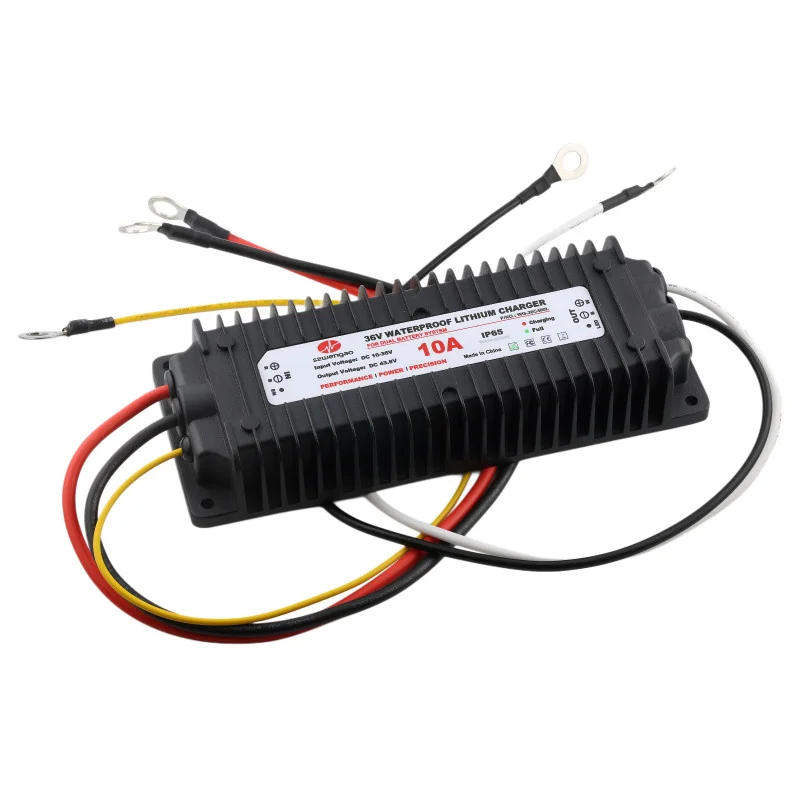

The WG-36C400L DC-DC charger is designed for reliable charging of lithium iron phosphate (LiFePO4) batteries with an output voltage of 43.8V. It offers high efficiency up to 96%, a robust design with an aluminum body and protection against water and dust thanks to IP65 protection. Thanks to advanced PWM technology, compact dimensions and a wide input voltage range, it is ideal for demanding mobile and stationary applications where safe and efficient charging is required.
Technical specifications
Input voltage range: 10-36V DC
Rated input voltage: 12V/24V DC
Output voltage: 43.8V DC
Output current: 10A (constant)
Maximum power: 438W
Efficiency: 96% (@ 24V input)
Waterproof: IP65
Ripple and noise: 220-280mVp-p
Working temperature: -35°C ~ +80°C
Dimensions: 200 × 77 × 30 mm (7.87 × 3.03 × 1.18 inches)
Weight: 1.1 kg
Cooling: Natural air circulation
Functions and features
High efficiency up to 96% at 24V input
Advanced PWM technology for stable and precise charging
LED charging status indication (red charging, green fully charged)
Complete protection: overvoltage, undervoltage, short circuit, overheating
Epoxy potting compound for increased resistance to moisture and vibration
Aluminum body for efficient heat dissipation and long life
100% full load testing in the production process
Low-noise design for stable operation
Compact dimensions allowing installation even in limited spaces
Ideal for
Charging LiFePO4 batteries in vehicles, campers, boats or trailers
Solar and island systems
Industrial and mobile applications requiring reliable DC-DC charging
Environments with higher humidity or dust thanks to IP65 protection
Package contents
DC-DC charger WG-36C400L
Connection cables (input: 10AWG, output: 12AWG) with M10/M8 eyelets, length 45 cm
Instructions for use
Why choose this product?
High efficiency with low energy losses
Safe operation thanks to multi-level protection
Durable and compact design suitable even for demanding environments
Easy installation thanks to pre-prepared cables and compact dimensions
Reliable operation even at extreme temperatures from -35 °C to +80 °C
