Descrizione
The PWM controller is designed for controlling the speed of a DC motor in the supply range of 9 to 60 V. The module uses continuous regulation in the range of 0 to 100% and is equipped with a digital display to display the set regulation level. The assembly includes a potentiometer with a control knob and a separate rocker switch. The design with power elements on the board and screw terminals is suitable for installation in equipment and technical applications with DC motors.
Technical specifications
Product type: PWM DC motor speed controller
Designed for: DC motor
Working voltage: 9-60V
Speed control range: 0-100%
Maximum current: 60 A
Rated current: 35 A at 12 V
Output: linear under load
Display: digital, three-digit
Connection: screw terminal block for motor and power supply
Terminal marking: 2x motor, negative power pole, positive power pole
Board size: 100 × 76 mm
Mounting hole spacing in the direction of the longer side: 90 mm
Mounting hole spacing in the direction of the shorter side: 65 mm
Display size: 23 × 14 mm
Potentiometer shaft diameter: 6.8 mm
Model designation on the base: Speed controller 40A
Functions and features
Electronic PWM speed control of a DC motor
Digital display of the regulation setpoint
Control via external potentiometer with knob
Separate switch in cable version
Board equipped with power components with heatsinks
Screw terminals for fixed connection of power supply and motor
The product requires a connected load, it should not be tested without a load.
Ideal for
Speed control of DC motors in workshop and hobby applications
Installation in devices with DC drive
Motor control in technical projects where manual power adjustment is required
Package contents

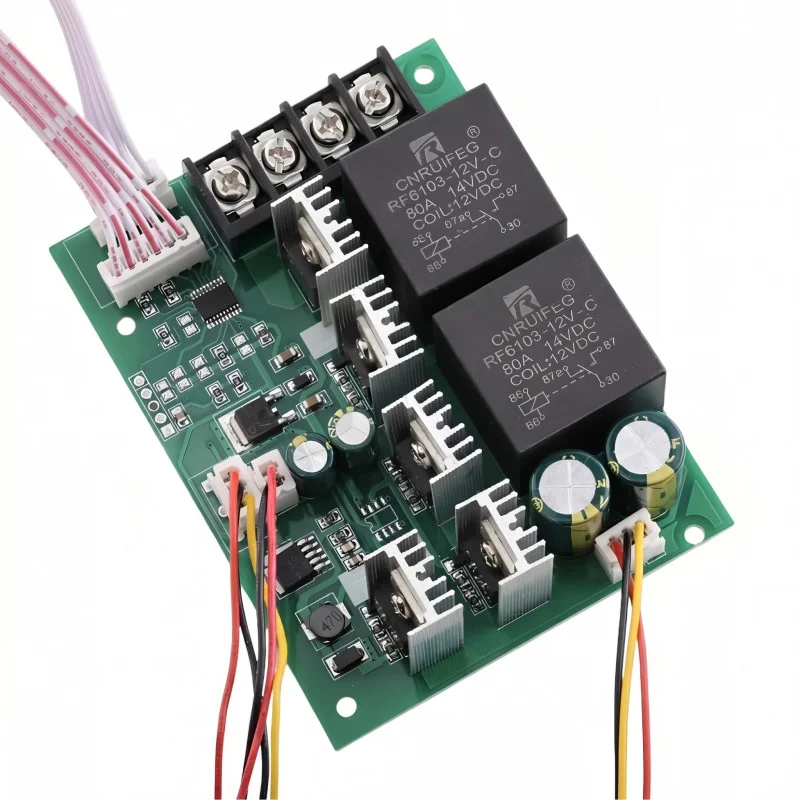

PWM control module on a printed circuit board
Potentiometer with connecting wire
Control knob
Digital display with connection cable
Rocker switch with wires
Why choose this product?
Allows DC motor control over a wide operating voltage range
Digital display simplifies repeated adjustment of the control level
Terminal connections and separate controls make integration into a panel or cabinet easy
The design is intended directly for powering and controlling a DC motor
Installation and operating instructions
Connect the motor to the two terminals marked for the motor and the power supply to the negative and positive terminals.
Observe the correct polarity of the power supply.
Operate the controller only with a connected load.
When installing, ensure sufficient ventilation and mechanical fastening of the module.
For higher current loads, use appropriate wires and firmly tightened terminals.
Safety notice
Incorrect wiring may cause damage to the controller, motor, or power supply.
During operation, there is a risk of heating of power components and terminals.
A short circuit at the output or power terminals can lead to damage to the device and wires.
Installation and connection must be carried out with the power supply disconnected.
The product is not intended for direct connection to the AC mains.
When integrated into a device, it is necessary to ensure protection against touching live parts and against mechanical damage.
