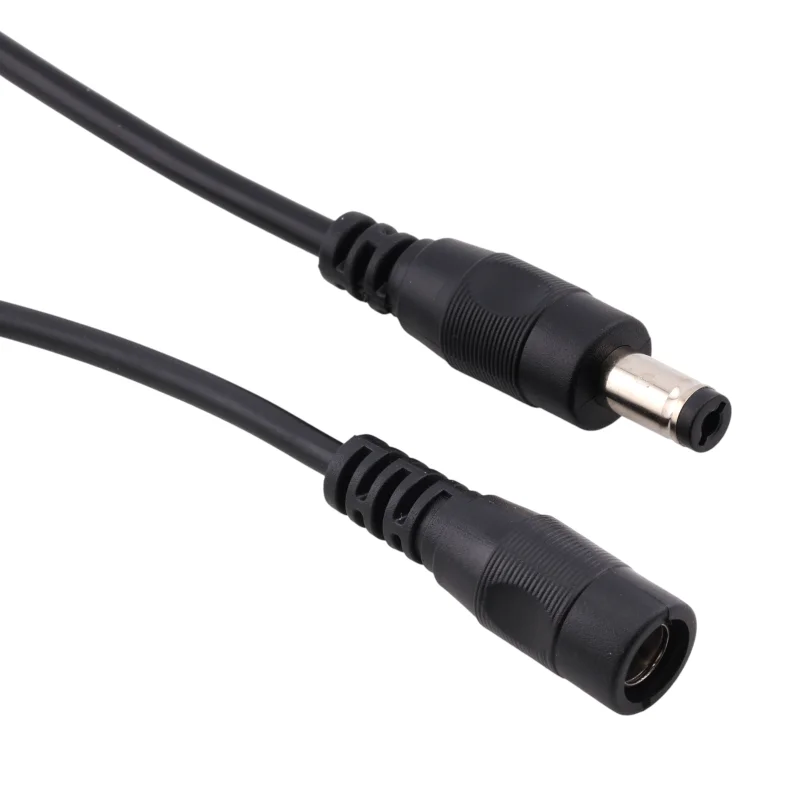

The DC power connector with attached wire is designed for quick connection and power supply of low-voltage DC devices without the need for soldering directly to the connector. The product is available in male (DC plug) and female (DC jack) versions for common 5.5×2.1 mm power interface, typically used in LED lighting and CCTV applications.
Technical specifications
Connector type: DC power connector 5.5×2.1 mm
Variants: male / female
Cable length: 15 cm
Wire cross-section: 22 AWG (0.35mm²)
Wire construction: 17×0.14
Conductor material: copper
Insulation: PVC
Color: black
Nominal values (according to documents): 300 V / 3 A
Temperature resistance (according to documents): 80 °C
Functions and features
Standard DC size 5.5×2.1 mm for compatibility with common power adapters and devices
Pre-assembled cable for easy connection to terminal blocks, distribution boards or custom assemblies
Tinned copper conductor for stable electrical contact and good solderability of the conductor ends
PVC insulation for mechanical protection of conductors in normal installation conditions
Ideal for
Power supply for LED strips and LED modules
CCTV cameras and accessories with DC power supply
Service replacement of damaged DC connectors on the cable
Prototyping and rapid interconnection of low-voltage DC devices
Package contents
1× DC connector with cable (variant of choice: male or female), length 15 cm
Why choose this product?
Clearly defined 5.5×2.1 mm dimension for common DC power applications
Practical design with cable for quick integration into the installation
Specified wire 22 AWG and wire material (tinned copper) according to the documents
Installation and operating instructions
Before connecting, verify that the connector size (5.5×2.1 mm) matches the counterpart of the device/source.
Verify power polarity and wire connections according to your application requirements
We recommend terminating the ends of the wires with a suitable ferrule or soldering them depending on the type of connection.
Provide cable strain relief to prevent stress on the connection
Safety notice
The product is intended for DC power applications; always verify voltage and current compatibility with the connected device before use.
Incorrect polarity or overloading may result in damage to the device or wiring.
Perform installation with the power disconnected.
