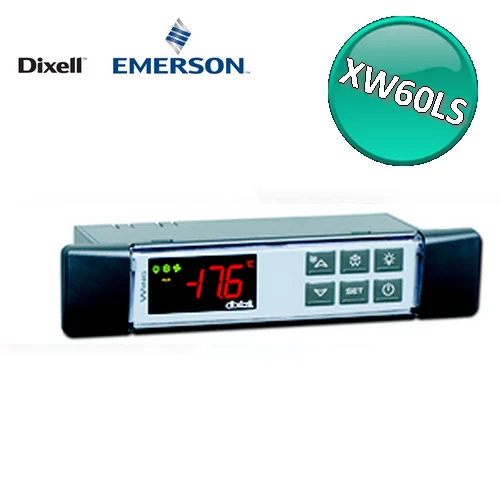

XW60LS – Digital controller for TN and BT
with defrost and fan management DIXELL 230 Vac
Features:
The XW60L is a microprocessor-based controller, suitable for applications on medium or low-temperature ventilated refrigeration units.
It has four relay outputs for controlling the compressor, defrosting (hot gas or resistance), evaporator fans, and lighting.
It is equipped with 2 selectable NTC or PTC probe inputs, one for thermostat control and the other for monitoring the evaporators defrost end temperature.
It includes an output for parameter list programming via the “Hot Key” programming key.
Main features of the XW60L:
Dimensions
38x185mm
General
Power supply: 24, 110, 230Vac
Display digits: ± 3 d.p.
Number of keypad buttons: 6
Probe inputs
Thermostat: NTC/PTC
Defrost: NTC/PTC
Condenser: NTC/PTC
Display: NTC/PTC
Digital inputs
Alarm, defrost start, door micro switch, pressure switch, probe: configurable
DI 2: configurable
Relay outputs
Compressor: 20A
Defrost: 8A
Fans: 8A
Light: 8A, 16A
Other
Hot Key/Prog Tool Kit: available
Serial output: TTL
Remote display output: X-REP optional
Buzzer: optional
Internal clock: optional
Product code: XW60LS
