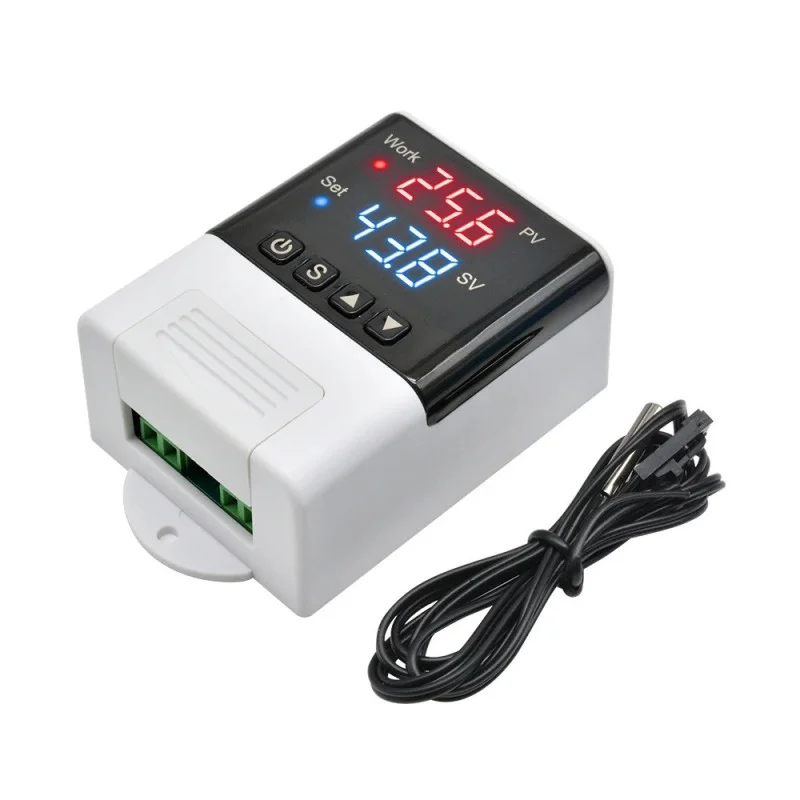

The DTC1110 is an advanced digital thermostat that provides a reliable solution for temperature control in a wide range of applications. Thanks to its modern design, high precision and easy operation, it is an ideal choice for homes, workshops, industrial operations and other environments.
Key Features:
Wide application: Can be used in various fields, from home automation to industrial applications.
Safe design: The shell made of non-flammable ABS material ensures safe and reliable operation.
High accuracy: Temperature measurement with a deviation of only ±1 °C.
Intelligent Control: Uses temperature feedback control for more precise control.
Specifications:
Model: DTC1110
Power: AC 110-220V
Temperature range: -40 °C to +99 °C
Measurement accuracy: ±1 °C (-40 °C to +70 °C)
Sensor length: 100 cm
Dimensions: 93 x 56 x 34 mm
Output capacity:
Cooling: 10 A/250 VAC
Heating: 10 A/250 VAC
Simple setup and operation:
Parameter adjustment: Set the desired temperature or adjust the parameters by holding the button.
Heating and cooling modes: Automatic switching between modes according to the set temperature limits.
Indicators: The digital display shows the current temperature and the status of the device.
Advanced features:
Settings memory: Restore default settings when errors or power failure are detected.
Alarms: Automatic signaling in case of overheating or sensor failure (display “HHH” or “LLL”).
Temperature calibration: The possibility of fine-tuning the measurement in the range of -10 °C to +10 °C.
Safety instructions:
Make all wiring changes only when the power supply is disconnected.
Keep the sensor away from power cables to avoid interference.
Do not use the thermostat in a humid environment or near sources of strong electromagnetic interference.
Package Contents:
1x DTC1110 digital thermostat
1x temperature probe
