Descrizione

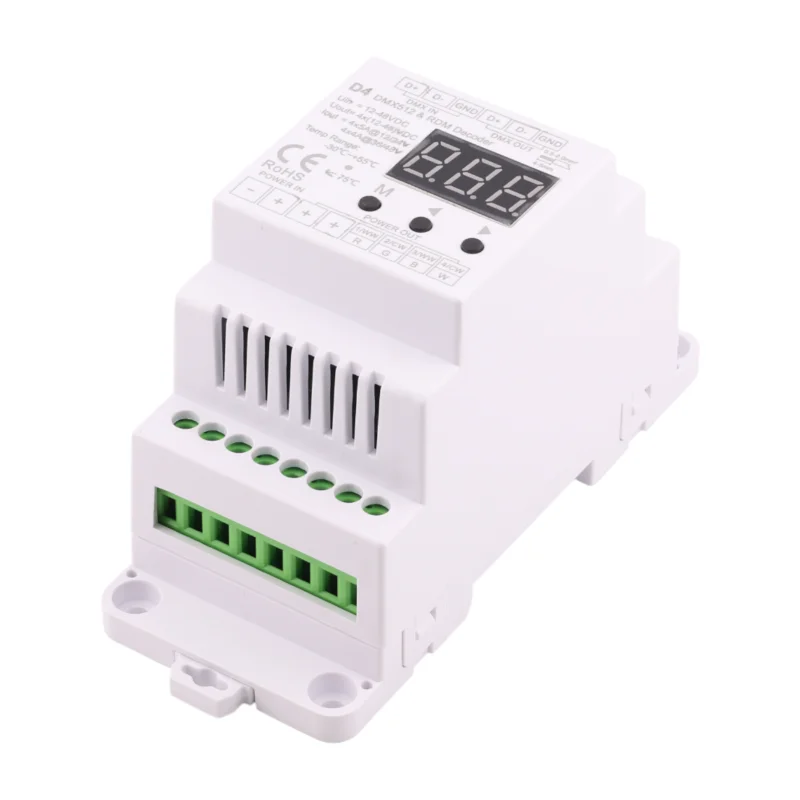

DMX512 decoder D4 is a professional control unit designed for precise control of LED strips and LED luminaires in systems controlled by the DMX512 protocol. It offers four output channels, high PWM resolution, a digital display for easy configuration and supports RGB, RGBW and single-color LED strips. Thanks to its DIN rail mounting, it is ideal for distribution cabinets, architectural installations and stage lighting.
Technical specifications
Model: D4
Control protocol: DMX512
Supply voltage: 12-24 V DC
Number of output channels: 4
Output current: 4 × 5 A (total max. 20 A)
Maximum power: 4 × 60 W at 12 V DC / 4 × 120 W at 24 V DC
Output type: constant voltage
PWM frequency: 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz (optional)
Dimming resolution: 8bit (256 levels) / 16bit (65536 levels)
Dimming curve: linear or logarithmic
Display: digital LED display
Control: buttons on the device
Mounting: DIN rail TS35
Protection: IP20
Operating temperature: 30 to +55 °C
Maximum housing temperature: +75 °C
Dimensions: 110 × 67 × 45 mm
Weight: 130g
Functions and features
Full compatibility with DMX512 standard
Digital setting of DMX start address using buttons
Support RDM communication between DMX controller and decoder
Selectable number of DMX channels: 1 / 2 / 4
Standalone operation mode without DMX signal
Support for RGB, RGBW and single-color LED strips
Automatic protection against overheating, overload and short circuit
Automatic operation recovery after error removal
Ideal for
Architectural and decorative LED lighting
DMX controlled LED installation
Theater and stage lighting
Lighting for bars, clubs and commercial spaces
Distribution board installations with DIN rail
Package contents
1× DMX512 decoder D4
Why choose this product?
Reliable, high-performance DMX512 decoder
Smooth dimming thanks to up to 16-bit resolution
Flexible use for different types of LED strips
Easy installation on DIN rail
Comprehensive protection for long device life
