Descrizione

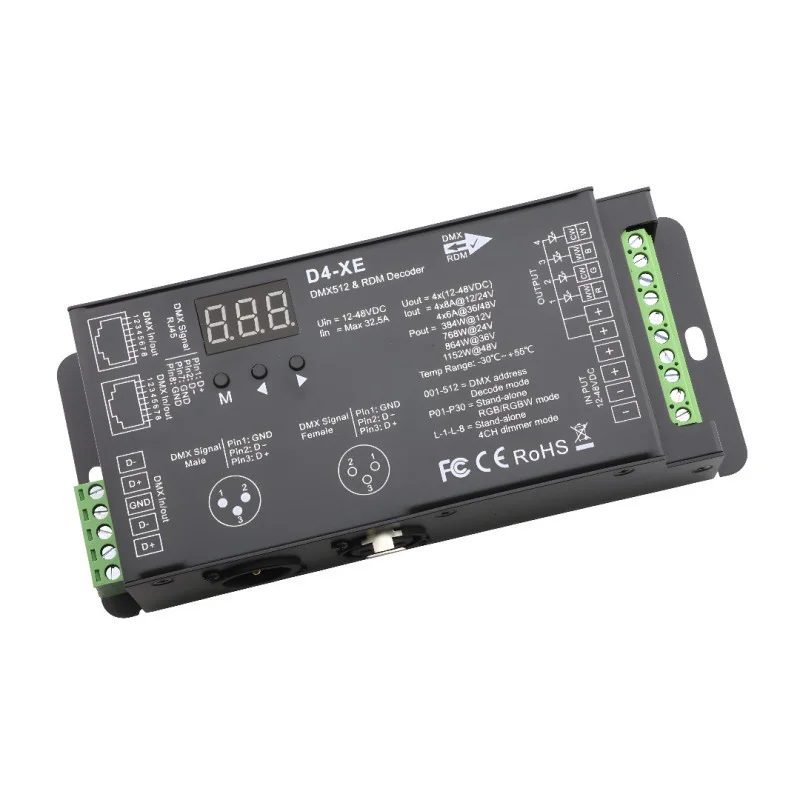

The DMX512 decoder D4-XE is a professional four-channel LED controller designed for controlling LED strips and LED fixtures with constant voltage using the DMX512 or RDM protocol. Thanks to the wide input voltage range of 12-48 V DC , it is suitable not only for common 12 V and 24 V applications, but also for powerful 36 V and 48 V LED systems used in architectural, stage and industrial lighting. The device offers high output power, flexible PWM settings and the possibility of standalone operation without a DMX signal.
Technical specifications
Input voltage: 12-48V DC
Output voltage: 4× (1248 V DC)
Output current: 8 A per channel (12-24V), 6 A per channel (36-48V)
Total output power: up to 288W (12V), 576W (24V), 864W (36V), 1536W (48V)
Output type: constant voltage (CV)
Number of channels: 1 / 2 / 4 DMX channels (optional)
DMX resolution: 8bit (256 levels) or 16bit (65,536 levels)
PWM frequency: 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz, 8000 Hz, 16000 Hz
Dimming curve: linear or logarithmic
DMX addresses: 001512
DMX signal input: XLR3, RJ45, terminal block
Protection: IP20
Operating temperature: -30°C to +55°C
Dimensions: 175 × 80 × 45 mm
Weight: 426g
Functions and features
Full compatibility with DMX512 and RDM protocols
Digital display for precise DMX address and parameter settings
Option to set 1, 2 or 4 channel decoding
Supports RGB, RGBW and standalone 4-channel dimmer
Built-in dynamic programs for stand-alone operation
Adjustable PWM frequency suitable for camera applications without visible flickering
Overheating and short circuit protection with automatic recovery
Possibility of operation without DMX signal (stand-alone mode)
Ideal for
Control of RGB and RGBW LED strips with voltage of 1248 V DC
Architectural and scenic lighting
Industrial LED installations with higher voltages 36 V and 48 V
DMX lighting systems with high performance requirements
Applications requiring precise and smooth dimming
Package contents
DMX512 LED decoder D4-XE
Mounting brackets
Why choose this product?
Supports a wide voltage range up to 48 V DC
High output power and current carrying capacity
Flexible setting of DMX channels and PWM parameters
Standalone operation possible without a DMX control unit
Reliable design suitable for professional installations
