Descrizione

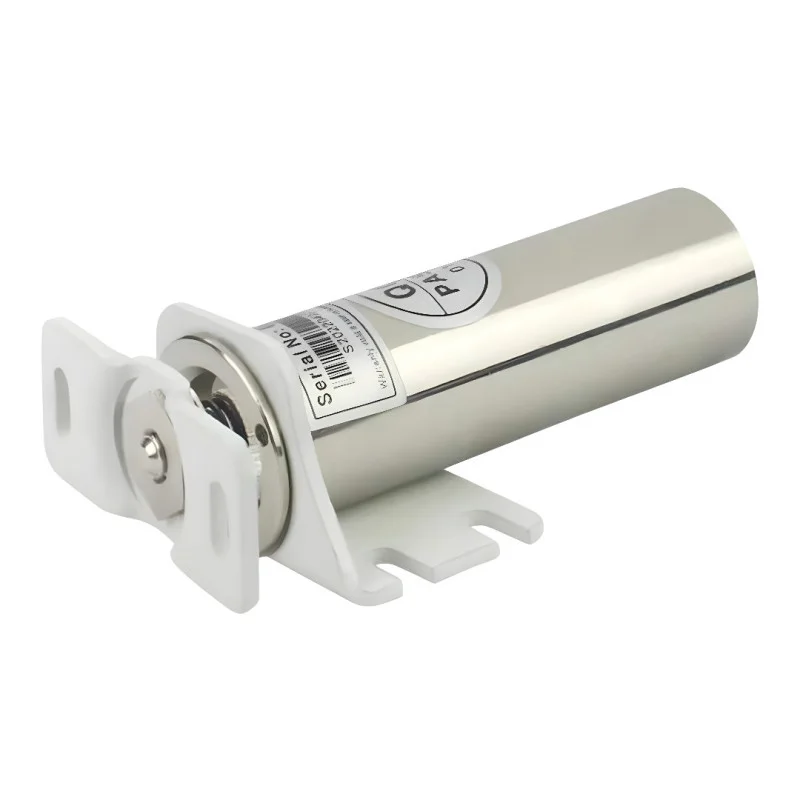

The LY305 electric bolt lock is a compact and robust electromagnetic lock designed for drawers, cabinets, filing cabinets and other storage spaces. Thanks to its all-metal construction, high mechanical resistance and power failure unlocking mode, it is suitable for access control systems and simple furniture security in offices, archives and homes.
Technical specifications
Model: LY305
Lock type: electromagnetic bolt lock
Supply voltage: 12 V DC
Working current: 100 mA
Operating mode: powered = locked, no power = unlocked
Mechanical tensile strength: more than 150 kg
Material: all-metal design, nickel-plated surface
Lock body dimensions: 64.1 × 40 × 25 mm
Counterpiece dimensions: 42 × 17.5 mm
Weight: 180g
Lifespan: 300,000 switching cycles
Protection: IP20
Functions and features
Electromagnetic bolt with high mechanical strength
Safe mode automatic unlocking during power failure
All-metal construction ensures long life
Nickel-plated surface for increased corrosion resistance
Compact dimensions suitable even for limited installation space
Easy integration into access and control systems
Ideal for
Drawers and filing cabinets
Storage and archive cabinets
Wardrobes and lockers
Furniture applications in offices and homes
Access control systems with external control
Package contents
Electric lock LY305
Counterpiece with latch
Mounting screws
Why choose this product?
High mechanical resistance up to 150 kg
Safe operation during power failure
All-metal, durable construction
Long service life and reliable operation
Compact dimensions and easy installation
