Descrizione

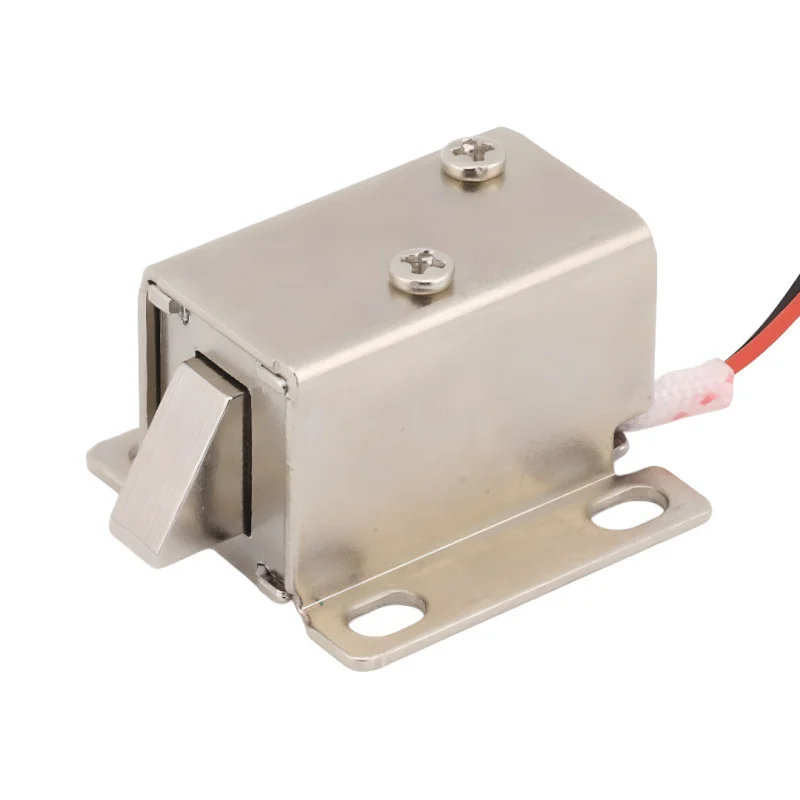

The LY031 miniature electromagnetic lock is a compact push-pull solenoid lock designed for drawers, cabinets, windows, safes and small doors. With its all-metal construction with multiple nickel plating, it offers high corrosion resistance, stable operation and long service life. The lock operates in the unlock mode after power is applied, making it ideal for controlled access and automation applications.
Technical specifications
Model: LY031
Lock type: electromagnetic push-pull solenoid
Available voltage options: 6 V DC / 12 V DC / 24 V DC
Current consumption (6 V): 0.8 A
Current consumption (12 V): 0.4 A
Current consumption (24 V): 0.2 A
Operating mode: powered = unlocked, no power = locked
Recommended switching time: 05 s
Piston stroke: 4 mm
Lock dimensions: 27 × 27 × 18 mm (L × W × H)
Material: metal, nickel-plated surface
Weight: 55g
Protection: IP20
Functions and features
Very compact design suitable even for limited installation space
Power-on unlock mode unlocking after power is applied
All-metal construction with multiple nickel finishes
Good resistance to corrosion and mechanical wear
Smooth telescopic operation with high operational stability
Easy integration with relays, timers and controllers
Ideal for
Drawers and furniture cabinets
Small doors and windows
Safes and safety boxes
Automation and DIY projects
Access systems with impulse control
Package contents
Electromagnetic lock LY031 (according to the selected voltage variant)
Why choose this product?
Choice of 6 V, 12 V and 24 V DC
Very small dimensions while maintaining reliable operation
Durable metal construction with long service life
Easy assembly and integration into electronic systems
The ideal solution for discreet and precisely controlled locking
