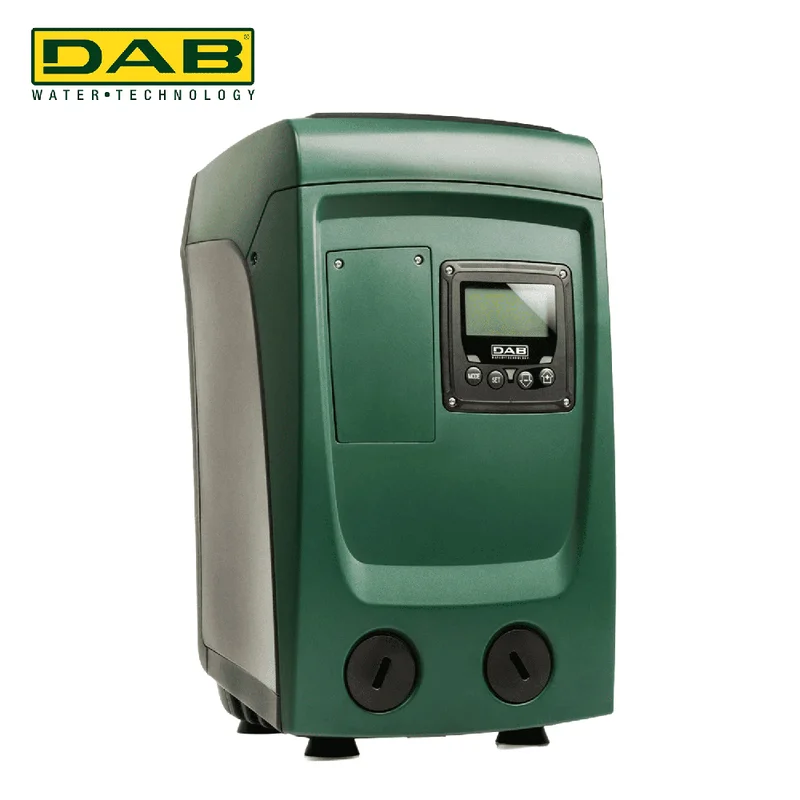

EsyBox Mini 3 automatic pressurization system with inverter DAB Description:
EsyBox Mini 3 is a compact, high-performance electronic pressurization system designed by DAB to ensure constant pressure in domestic systems and small residential applications. Thanks to the integrated inverter, it optimizes energy consumption and ensures quiet, stable and reliable operation. It is ideal for drawing water from shallow wells, rainwater reuse and irrigation of small gardens, offering a simple user experience thanks to the adjustable display and guided first-start procedure. Integrated connectivity allows remote control via DConnect, making system management immediate even from a distance. The compact design and multiple installation options (horizontal, vertical or wall-mounted) make it a versatile solution for limited spaces. Sentences taken from the PDF: Self-priming multistage electronic pressurization system Possibility to create groups of up to a maximum of two pumps in wireless mode. / The inverter function allows energy saving and protection against water hammer.
Features:
Automatic pressurization system with integrated inverter for constant pressure.
Self-priming, ideal for shallow wells and rainwater recovery.
Adjustable display with guided configuration and alarm history.
Integrated connectivity for remote management via DConnect portal and app.
Quiet operation thanks to ABS soundproof casings.
Flexible installation: horizontal, vertical or wall-mounted.
Possibility of group operation with two pumps via wireless.
Durable, corrosion-resistant materials for long service life.
Specifications:
Maximum flow rate: 4,8 m³/h
Maximum head: 55 m
Liquid temperature: 0°C +35°C (domestic use), 0°C +40°C (other uses)
Max ambient temperature: +50°C
Max suction depth: 8 m
Maximum operating pressure: 7,5 bar / 750 kPa
Power supply: Single-phase 230 V 50 Hz
Max P1 power: 0,85 kW / 1,1 HP
Rated current: 4,8 A
Protection rating: IP X4
Insulation class: F
Main materials: technopolymer impellers, AISI 304 stainless steel motor sleeve, PP OMO 30% GF motor body
Dimensions: 439 × 263 × 236 mm
Hydraulic connections: 1″ suction / 1″ delivery
Weight: 14,6 kg
Certifications: WRAS, ACS, NFS
Integrated content: non-return valve, 100 cc expansion vessel, pressure sensor, flow switch
Accessory compatibility: EsyDock, EsyTank 300/500, EsyTwin Mini, Outdoor Kit, EsyWall
Product code: 60212597
