Descrizione

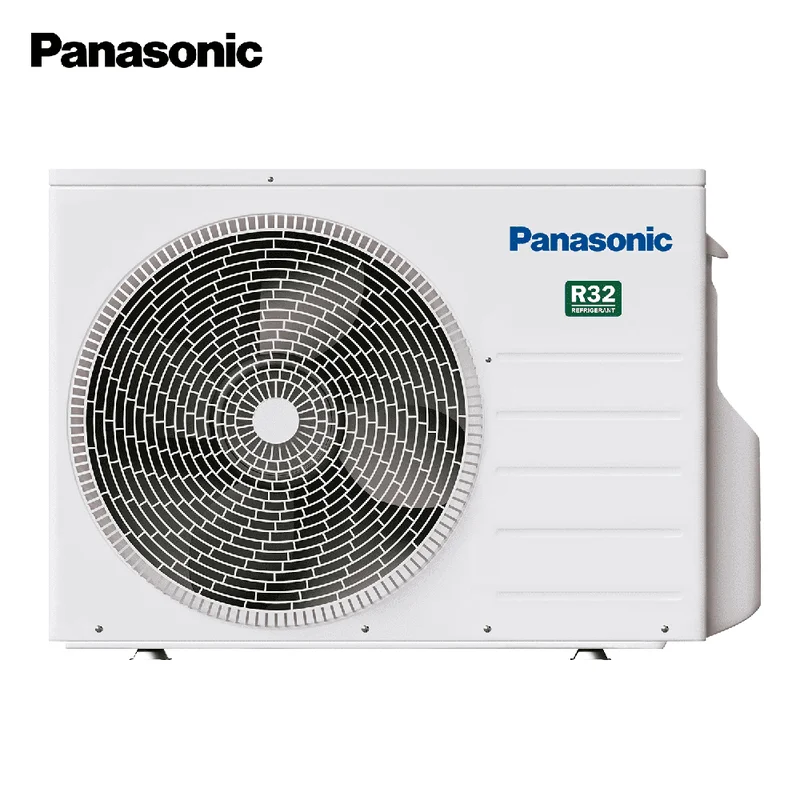

ETHEREA C dual outdoor unit 3.2 / 6.0 Kw for R32 multi systems – PANASONIC CU-2Z41CBE Model:
Outdoor unit: Free Multi Etherea C system
Outdoor unit model: CU-2Z41CBE
Type: multisplit air-to-air heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 9,10 / 4,80
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A++
Seasonal energy consumption kWh/year: 158 (cooling) / 1021 (heating)
Can be connected to up to 2 indoor units with a total indoor nominal capacity of 3,2~6,0 kW. The unit must operate with a minimum of 2 indoor units connected.
Performance:
Cooling capacity (kW): 4,10 (min 1,50 max 5,20)
Heating capacity (kW): 4,60 (min 1,10 max 7,00)
Sound pressure MAX-MIN (dB(A+1): 48 / data not specified
Cooling input power Kw: 0,94 (min 0,25 max 1,37)
Heating input power Kw: 0,93 (min 0,21 max 1,79)
Nominal EER / COP: 4,36 / 4,95
Heating capacity at -7°C: 4,18 kW
Electrical data:
Power supply ( / V /Hz): 1 / 230 / 50
Technical specifications:
Refrigerant gas: R32 (1,18 kg / CO Eq. 0,797 T)
Liquid / gas pipe diameter (inches): 1/4 (6,35 mm) / 3/8 (9,52 mm)
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: 30 m
Maximum height difference (indoor/outdoor unit): 10 m
Operating limits (outdoor temperature): cooling -10°C / +46°C
Operating limits (outdoor temperature): heating -15°C / +24°C
Dimensions and weight:
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 619 x 824 x 299 mm 37 Kg
Product code: CU-2Z41CBE
