Descrizione

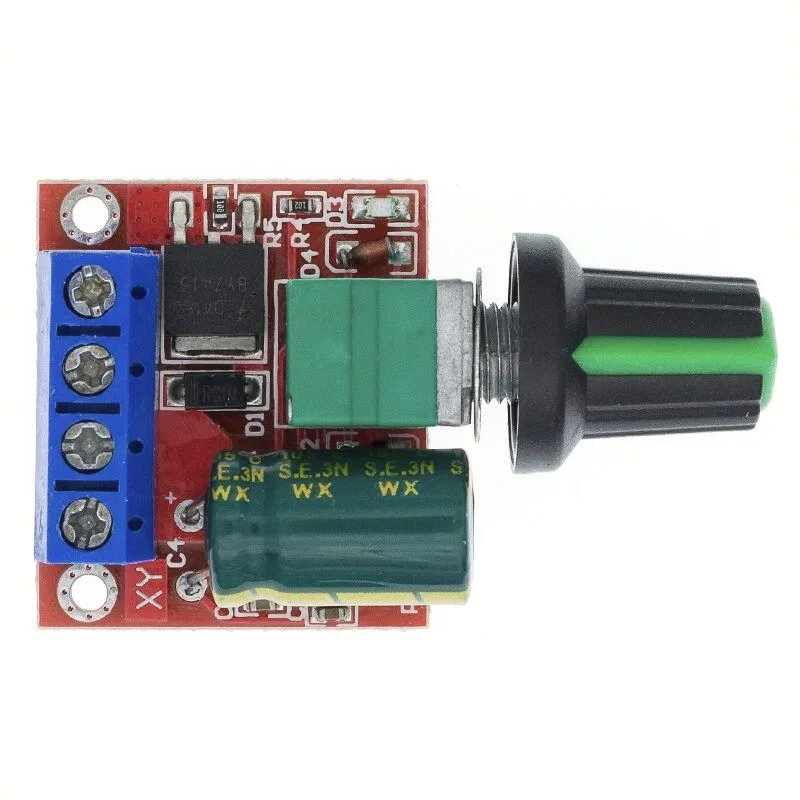

Universal PWM speed controller for DC motors with voltage 4.535 V DC. Allows smooth control of motor rotation speed using a potentiometer with high efficiency and accuracy. Ideal for speed control of small DC motors, fans, pumps or LED strips.
Technical specifications
Input voltage: DC 4.535 V
Output current: 0-5A
Maximum power: 90 W
Quiescent current: 7 µA (standby)
PWM control range: 1% 100%
PWM frequency: 20 kHz
Module dimensions: 30 × 26 × 14 mm (without potentiometer shaft)
Functions and features
Continuous motor speed control using a rotary potentiometer
High efficiency thanks to PWM technology
Small dimensions and easy installation
Suitable for motors with positive and negative polarity
Reverse polarity and overload protection
Wide voltage ranges allow use with both 12V and 24V motors
Ideal for
DC motors in fans, pumps and models
Motor speed control in DIY projects
12V/24V power systems
Automotive and industrial applications with DC motors
Package contents
1× DC 4.5V35V motor speed controller (PWM 05A, 90W)
Why choose this product?
Simple and reliable solution for speed control of DC motors
High efficiency and precise control thanks to PWM
Compact design suitable for built-in use
Easy installation and wide compatibility with common DC motors
Ideal for 12V and 24V applications fans, pumps, models
