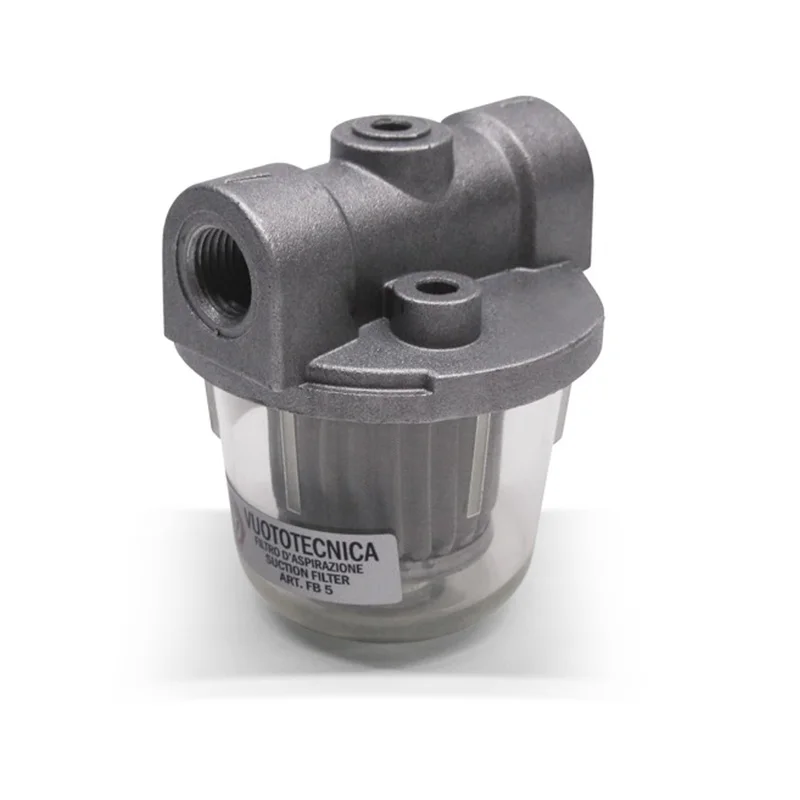

VTFB5 – IN-LINE SUCTION FILTER
1/4′ x 1/4′ female gas thread connections
with stainless steel mesh filter cartridge
Description:
Preventing impurities from reaching the vacuum pump is essential to ensure its optimal performance and long lifespan.
These filters, installed at the vacuum pump suction inlet or on the pipeline of the system, serve this purpose.
Designed simply and rationally, they have threaded connections for installation and an easy-to-open lid for quick cleaning of the filter cartridge.
The lid is made of transparent plastic material (cellulose acetate), highly impact-resistant.
The standard filter cartridges are made of pleated stainless steel mesh with a filtration degree of 44
This model is particularly recommended in the presence of vapors or water and oil condensate
Technical features
Operating pressure: from 0.5 to 3000 mbar absolute
Fluid temperature: from -20 to +50 °C for filters with transparent plastic bowl
Filtration degree: 44
Flow rate: 5 m³/h
Product code: VTFB5
