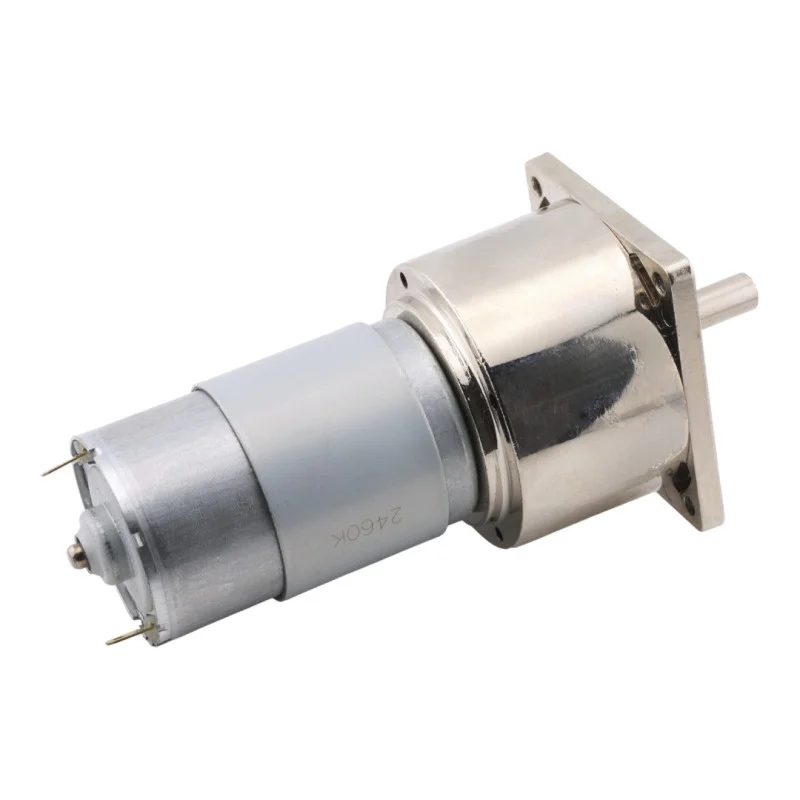

Geared motor 60GA775-Spedizione veloce

Descrizione

The robust 60GA775 gear motor is designed for applications where high torque, smooth operation and reliability are required even during long-term operation. Thanks to the high-quality gearbox and power class up to 35W, it is ideal for automation, motion mechanisms, lifting systems, sliding units, model making and industrial construction. We offer variants only in pure form without accessories – i.e. the motor itself, ready for installation. Speed options from 5 to 500 RPM and 12V or 24V power supply versions are also available.

Technical specifications

Supply voltage: 12V DC or 24V DC (depending on the selected variant)

Rotation speeds: 5 RPM / 10 RPM / 30 RPM / 50 RPM / 100 RPM / 200 RPM / 300 RPM / 500 RPM (depending on the selected variant)

Motor type: DC gear motor

Construction: Permanent magnet, fully enclosed design

Power: 18.637.5 W (depending on load and voltage)

Rated current: 2 A

Torque: up to 80 kg·cm (value varies depending on speed)

Commutation: Brushed

Efficiency: IE1

Gearbox dimensions: 60 × 60 mm

Total motor length: 95115 mm (depending on gear ratio)

Shaft diameter: 8 mm

Shaft length: 19 mm

Weight: 520g

Protection: IP20

Functions and features

High torque suitable for demanding mechanical loads

Stable and long-lasting gearbox

Wide range of speeds for precise and smooth movement control

Durable construction suitable for continuous operation

Possibility to select voltage according to the available power supply system

Ideal for

Home and industrial automation

Linear and rotary sliding mechanisms

Lifting and transmission systems

Model making and mechatronic projects

Construction and DIY construction requiring a reliable motor

Package contents

1× Gear motor 60GA775 (without accessories)

Why choose this product?

Strong power up to 37.5 W for demanding applications

Choice of eight speed options (5500 RPM)

Robust gearbox and high reliability

Available in two voltage versions: 12V and 24V

Universal motor suitable for a wide range of automation projects
