Descrizione

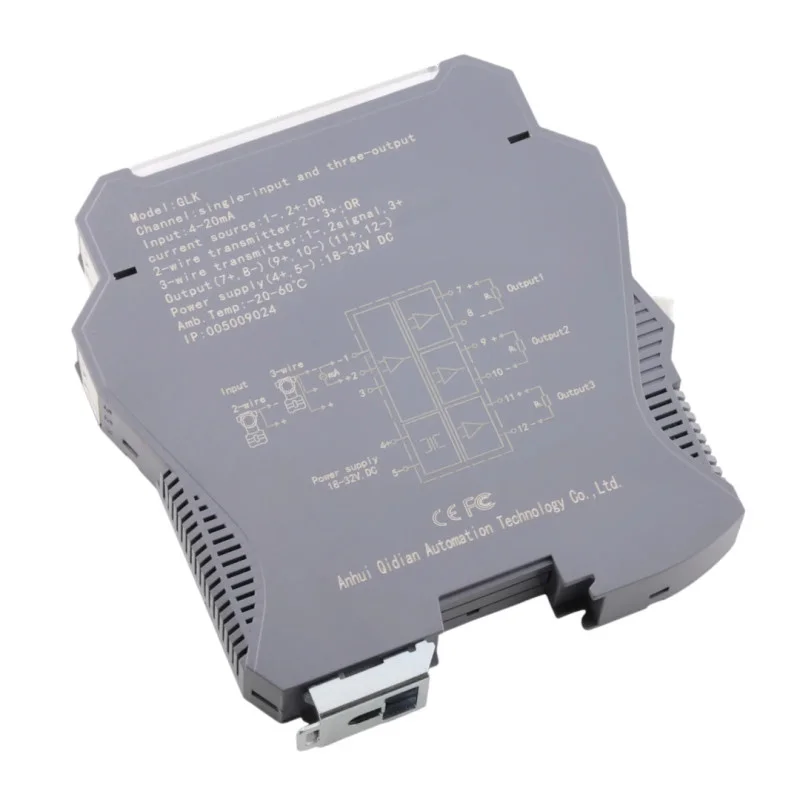

The intelligent signal isolator is designed for safe isolation, conversion and distribution of industrial signals. It ensures reliable transmission without interference and protects PLC, PAC and other devices in the field of automation and industrial control.
Technical specifications
Model: GLK
Input signal: 4-20 mA, 0-10 V, 0-5 V
Output signal: 420 mA, 010 V, 05 V
Accuracy: ±0.1% FS
Response time: < 10 ms
Operating temperature: -20°C to +55°C
Insulation strength: 1500 V AC
Insulation resistance: 100 M
Consumption: power supply DC 18-32 V (standard DC 24 V)
Dimensions:
1 In 1 Out, 1 In 2 Out: 12.5 x 110 x 118.9mm
1 In 4 Out, 1 In 4 Out, 2 In 2 Out: 17.7 × 110 × 118.9 mm
Weight: 0.3 kg
Mounting: 35 mm DIN rail
Housing: ABS plastic
Certification: CE, FCC, RoHS
Functions and features
Isolation of input and output signals to increase system safety and reliability
Support for multiple signal types (current and voltage)
Fast response suitable for dynamic processes
Compatible with PLCs, PACs and industrial controllers
Easy DIN rail mounting
Ideal for
Industrial automation and process control
PLC programming and input/output expansion
Isolation and conversion of analog signals
Protection of control systems against surges and interference
Package contents
1× GLK signal isolator (depending on the selected variant)
Variants
1 In 1 Out
1 In 2 Out
1 In 3 Out
1 In 4 Out
2 In 2 Out
Why choose this product?
Broad compatibility with standard industry signals
High accuracy and reliability even in demanding conditions
Compact design suitable for installation in control cabinets
International certifications (CE, FCC, RoHS)
Long service life and safe operation
