Descrizione

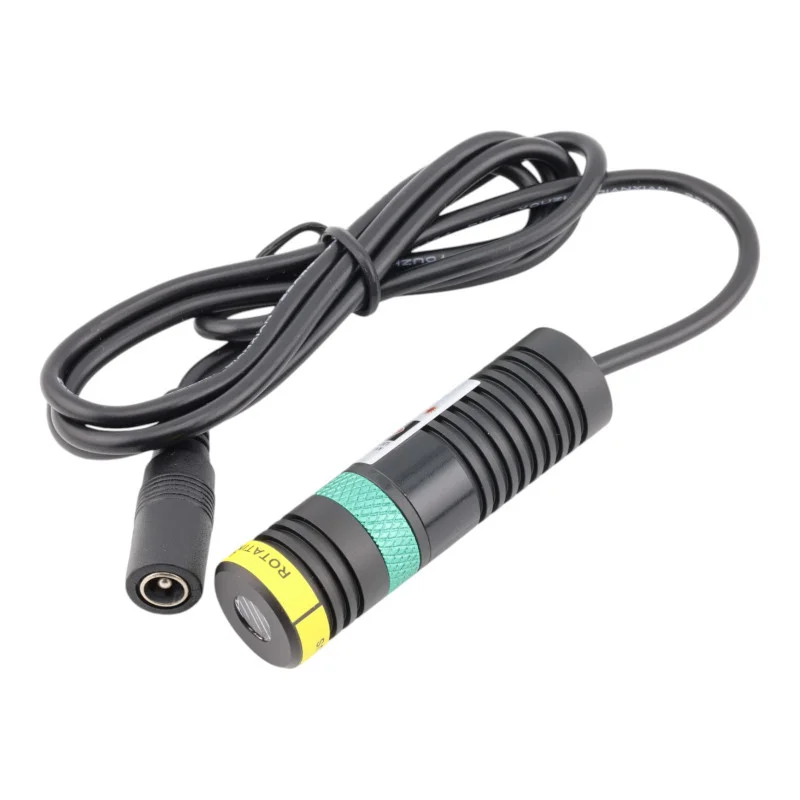

The 520nm green laser module is designed for applications where a highly visible and precise line display is required. Thanks to the selectable beam angle, it provides a sharp and contrasting laser line, which is suitable for measuring and alignment systems, industrial automation, machine vision and creative projects.

Technical specifications

Wavelength: 520 nm (green)

Projection type: laser line

Beam angle: depending on the variant 5°, 15°, 30°, 45°, 60°, 90°, 110°

Optical power: depending on the variant 10 mW, 20 mW, 30 mW, 50 mW, 80 mW, 100 mW, 135 mW

Supply voltage: 5V DC

Degree of protection: IP20

Operating temperature: 10 °C to +50 °C

Body dimensions: Ø18 × 65 mm

Power cable length: 100 cm

Functions and features

High visibility of the green laser even in normal ambient lighting

Sharp and even laser line projection

Compact metal design suitable for fixed mounting

Stable performance during long-term operation

Simple power supply from 5 V DC source

Ideal for

Industrial measuring and compensation systems

Machine vision and positioning

Laser marking and control lines

DIY and creative projects

Laboratory and development applications

Approximate length of projection line

The table below shows the approximate lengths of the laser line depending on the beam angle and the distance of the laser module from the projected surface. The values given have a tolerance of ±10%.

Package contents

Laser module with 520 nm green laser

Why choose this product?

Excellent visibility thanks to the green wavelength of 520 nm

Wide range of beam angles and power options

Accurate and stable line projection

Compact dimensions and easy integration into devices

Safety notice

Laser device. Never look directly into the laser beam or its reflection. Eye contact with the beam can cause serious eye damage. Wear protective glasses designed for a wavelength of 520 nm when working.
