Descrizione

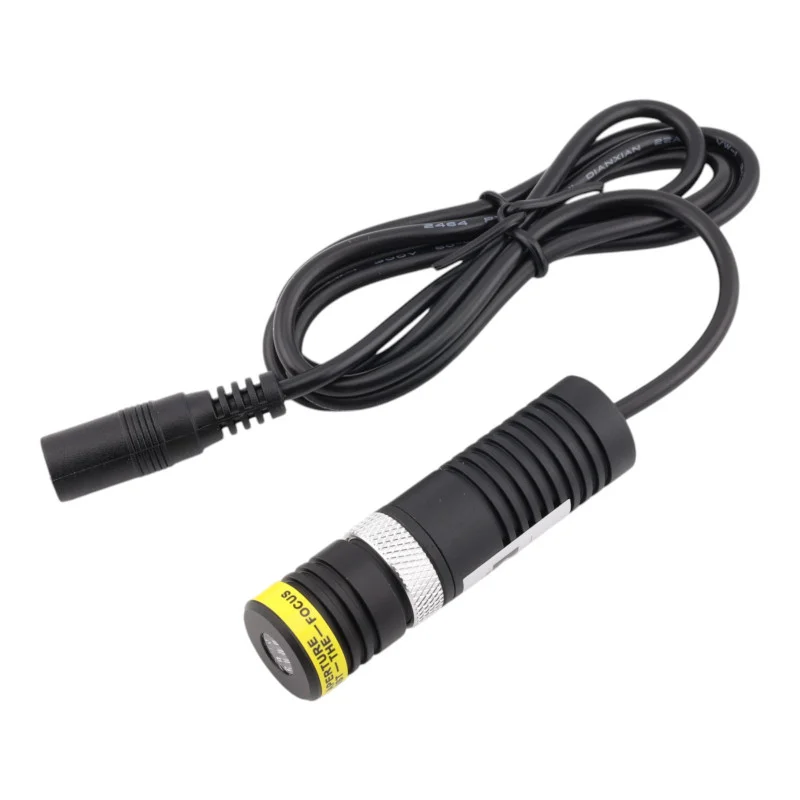

The infrared laser module with a wavelength of 940 nm is designed for applications requiring a point laser beam outside the visible spectrum. Thanks to its focusable design, it allows you to adjust the spot size according to the specific application, for example for positioning, sensing, optical fixtures or integration into measuring and industrial systems. The module is mounted in an aluminum housing and is designed for power supply with a direct voltage of 5 V DC.
Technical specifications
Wavelength: 940 nm
Beam type: spot
Design: focusable laser module
Case dimensions: 18 × 65 mm
Housing material: aluminum
Lens type: glass lens
Supply voltage: 5V DC
Operating mode: APC
Connection: cable with DC connector 5.5 × 2.1 mm
Cable length: 1 m
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +85°C
Mean time to failure: more than 8,000 hours
Available power variants of this series: 30 mW, 50 mW, 100 mW, 150 mW, 200 mW, 300 mW
Functions and features
Infrared radiation 940 nm is suitable for applications where a visible light spot is not required
Focusable optics allow you to adjust the size and sharpness of the spot to the working distance
Compact cylindrical housing facilitates mechanical integration into equipment
Aluminum body contributes to heat dissipation during operation
5 V DC power supply allows easy integration into common electronic systems
APC/ACC control mode supports stable operation of the laser module
Ideal for
Positioning and aiming systems
Industrial and laboratory optical preparations
Integration into measuring and testing equipment
Infrared detection and sensing applications
Development and experimental workplaces
Package contents
1x infrared laser module 940 nm
Why choose this product?
Design suitable for technical and industrial use
Precisely defined wavelength of 940 nm for infrared applications
Possibility to focus the beam according to the requirements of a specific installation
Compact dimensions and standard 5 V DC power supply
Wide performance range within the same design
Installation and operating instructions
For proper operation, it is necessary to ensure a stabilized 5 V DC power supply.
Mount the module in an appropriate bracket or fixed mechanical position.
When adjusting the focus, make changes carefully and with laser safety in mind.
During long-term operation and with higher power variants, we recommend ensuring sufficient heat dissipation.
To verify the function of the infrared beam, use a suitable detection device designed for the IR range.
Safety notice
940 nm laser radiation is outside the visible spectrum and the beam may not be detectable by the human eye
Do not look into the module’s output aperture or direct the beam at people or animals.
Use appropriate protective equipment for working with laser radiation during installation and testing.
The product is not intended as a toy and must only be operated by a qualified person.
When using, the relevant safety regulations for laser devices must be observed.
