Descrizione

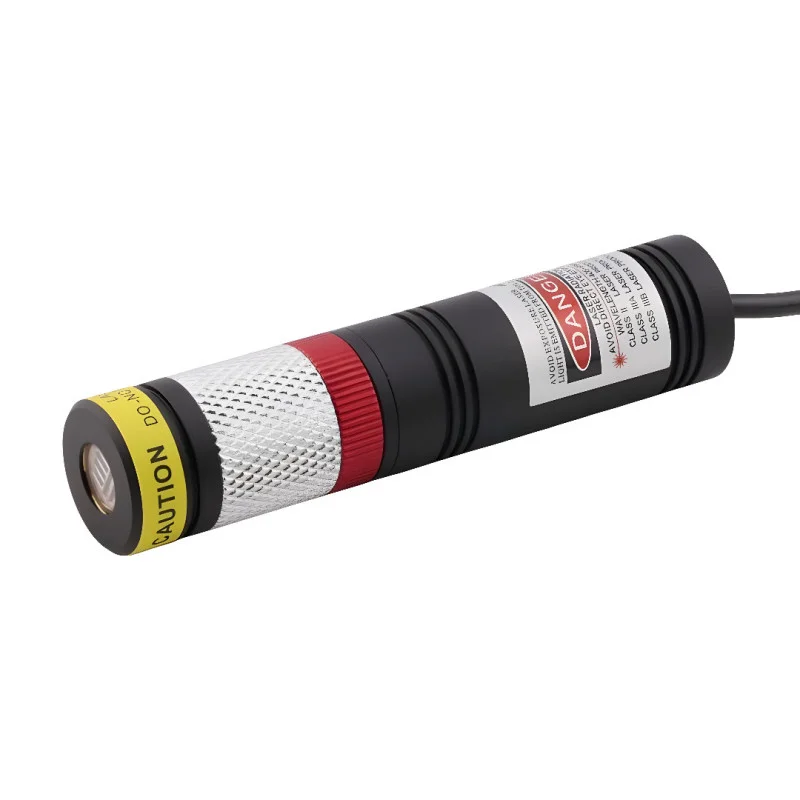

The laser module with a red wavelength of 660 nm is designed for projection of a 10×10 dot grid (DOE) and is used mainly for positioning, aiming and position control during cutting and other industrial operations. The design in an aluminum housing and the possibility of sharpening allow the projection to be adapted to a specific application.
Technical specifications
Wavelength: 660 nm (red)
Beam shape: DOE 10×10
Beam angle: 42×42°
Optical power (variants): 50 mW, 100 mW, 150 mW, 200 mW
Real output power:
50mW (3845mW)
100mW (7595mW)
150mW (100120mW)
200mW (130150mW)
Operating mode: CW (continuous light)
Current control: APC
Supply voltage: 5V DC
Operating current: < 500 mA
Connector type: DC 5.5×2.1mm/5.5×2.5mm
Cable length: 100 cm
Housing material: aluminum
Optics material: PMMA
Module dimensions: diameter 20 mm × length 90 mm
Weight: 65g
Protection: IP67
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +85°C
Mean Time to Failure (MTTF):> 8,000 hours
Functions and features
10×10 grid projection for quick visual positioning
Focusable optics (adjustable focus)
Compact aluminum housing for better heat dissipation
5 V DC power supply for integration into machine and control systems
IP67 protection for use in more demanding operating conditions
Ideal for
Positioning during cutting and marking in industrial machines
Setting reference points and checking position in assembly fixtures
Visual guidance in automation and production lines
Package contents
Laser module with connecting wire and DC connector
Why choose this product?
Defined 10×10 grid projection using DOE optics
Standard mechanical design Ø20 × 90 mm for easy integration
5 V DC power supply and finished DC 5.5 × 2.1 mm cable termination
Durable design with IP67 protection
Installation and operating instructions
Ensure a stabilized 5 V DC power supply with sufficient current reserve for the selected power option.
Mount the module in a way that ensures cooling of the housing and mechanical stability of the projection.
After assembly, adjust the focus according to the desired size and sharpness of the projection at the working distance.
Connect the 5.5 × 2.1 mm DC connector when the power is disconnected.
Safety notice
This is a laser source. Do not point the beam into your eyes or observe the direct or reflected beam.
During installation and adjustment, use appropriate protective equipment and follow the internal safety regulations of the workplace.
Operate the module only within the specified electrical and temperature conditions.
