Descrizione

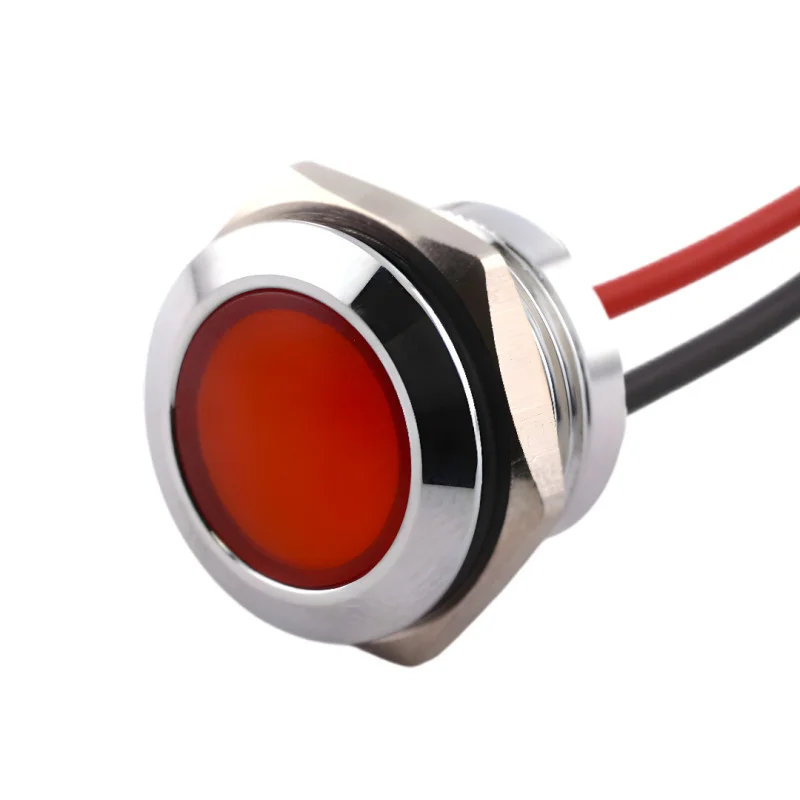

Professional metal LED indicator with a diameter of 19 mm is designed for reliable signaling of power, operation or equipment failure. Thanks to a wide voltage range and five available colors (yellow, blue, red, green, white), it is an ideal choice for industrial control panels, switchboards, measuring instruments and hobby projects.
Technical specifications
Model: HYD-L-19
Mounting hole diameter: 19 mm
Supply voltage: 36V / 1224V / 110220V (depending on variant)
Light source type: LED
Body material: metal (aluminum alloy with chrome finish)
LED colors: yellow, blue, red, green, white
Luminosity:
Red: 9001200 mcd
Green: 16002200 mcd
Yellow: 13001800 mcd
Blue: 10001600 mcd
White: 20002500 mcd
Rated LED current: 1020 mA (depending on voltage version)
Protection level: IP65
Mechanical resistance: IK08
LED life: up to 40,000 hours
Body dimensions: 25 × 23 mm
Thread: M19×1
Connection: 150mm wires
Operating temperature: -25°C to +80°C
Weight: 21 g
Functions and features
High brightness and long life of LED diodes
Metal body with non-flammable base for safe operation
Sealing ensures resistance to dust and moisture (IP65)
Easy installation in a 19 mm diameter hole
Suitable for direct connection to DC and AC voltage
Different color variants for clear and concise signaling
Elegant industrial design and quality workmanship
Ideal for
Control and dashboards
Electrical switchboards
Industrial machines and CNC equipment
Electronic devices and laboratory equipment
DIY projects and modules for hobby electronics
Package contents
1× metal signal light HYD-L-19 (color according to the selected variant)
1× mounting nut
1× sealing ring (O-ring) for protection against moisture
Why choose this product?
Extended mounting diameter of 19 mm for stable mounting
Universal power supply range 3220 V AC/DC
High-quality metal construction with long service life
High luminosity and excellent visibility even in daylight
Safe and quick installation in panels or distribution boards
Five colors available for different signaling purposes
