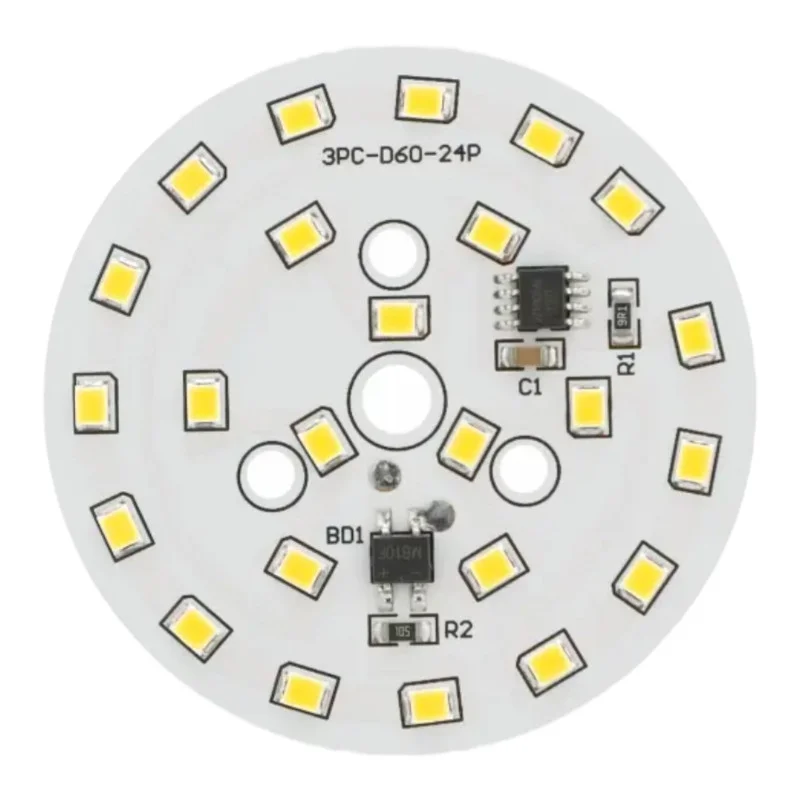

The round LED module for direct AC power supply is designed for repair and production of luminaires where a compact circular printed circuit board and a wide beam angle are required. The module is available in warm white or cool white light color options.
Technical specifications
LED type: 2835 SMD
Number of LEDs: 24
Rated power consumption: 9 W
Power supply: 170-275 V AC (direct mains power supply)
Outer diameter: 60 mm
Beam angle: 120130°
Luminous intensity: 720810 lm
Light color (variants): warm white (30003500 K), cool white (60006500 K)
Functions and features
Circular design for installation in compact luminaires and light sources
Wide beam angle suitable for area lighting
Power supply directly from AC without external low-voltage source (depending on module design)
SMD LED installation for even light distribution across the module surface
Ideal for
Repairs and overhaul of luminaires with a circular LED module Ø60 mm
DIY and prototype designs of networked LED luminaires
Ceiling and wall lights with diffuser and sufficient space for insulation and cooling
Package contents
1x LED module round Ø60 mm
Wires and terminal blocks are not included in the package.
Why choose this product?
Clearly defined electrical and optical parameters for luminaire design and service
Compact size of Ø60 mm while maintaining a wide beam angle
Possibility to select color temperature according to application
Installation and operating instructions
Important: The module does not contain wires or a terminal block; the lead wires must be soldered directly to the LED module’s printed circuit board.
Before soldering, disconnect the power supply and verify that there is no voltage.
Use wires with appropriate insulation for the mains voltage and provide strain relief to prevent mechanical stress from being transferred to the soldered joints.
After installation, ensure that no conductive part of the module can touch the metal parts of the luminaire without adequate insulation.
Install the module in the luminaire in such a way that sufficient cooling is ensured and the operating conditions given by the luminaire design are not exceeded.
Safety notice
Warning: The module is powered by a mains voltage of 170275 V AC. Improper handling may result in electric shock, fire or damage to the device.
Perform installation and service only with the power supply disconnected; after disconnection, wait for any components in the circuit to discharge and always verify the voltage-free state by measurement.
Do not operate the module outside of an enclosed luminaire or without providing a cover that prevents contact with live parts.
Ensure sufficient insulation distances and mechanical fastening; do not allow contact with conductive parts, screws or edges that may damage the insulation of the wires.
Use only wires and soldering material suitable for network applications; after soldering, check the quality of the connections and the absence of short circuits.
Do not operate the module in environments with high humidity or where condensation may occur unless the luminaire design provides adequate protection.
If the board, LEDs, soldering pads or wire insulation are damaged, do not use the module any longer.
