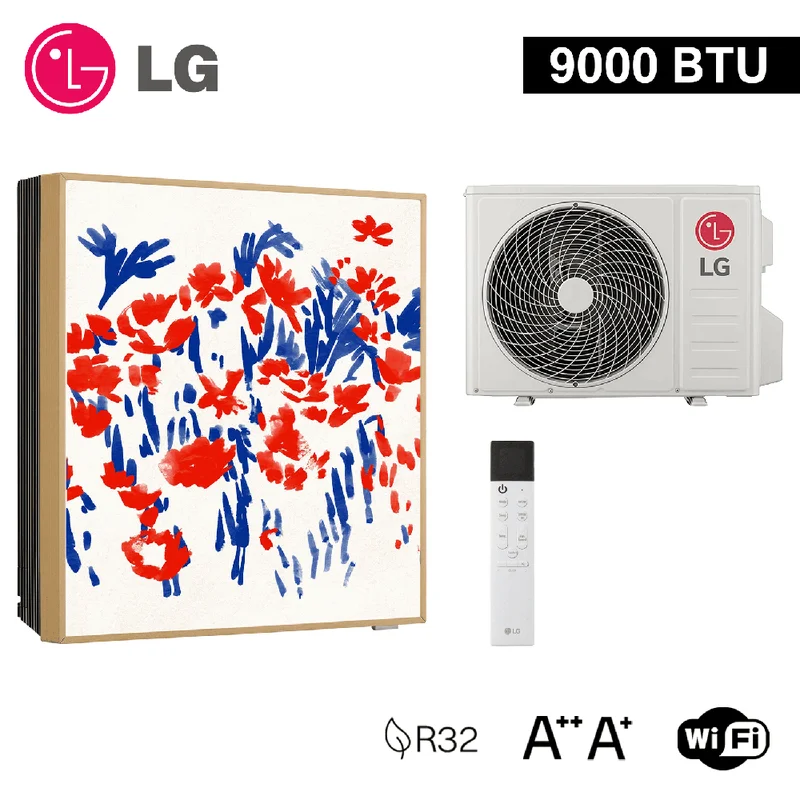

+ A09GA1.U18 – LG Artcool PHOTO WiFi – 9000 BTU
Mono split air conditioner A++ / A+ / Gallery Photo finish
Structure:
Wall-mounted indoor unit for LG R32 systems
Internal support frame in galvanized steel and shockproof plastic exterior shell
Customizable front panel with wooden frame and magnetic lower profile
Air intake located at the top of the front panel, with three-directional airflow (DX, SX, LOWER)
Multi-row heat exchanger with copper tubes and aluminum fins, refrigerant control via electronic expansion valve on the outdoor unit
Comfort Power:
3D air distribution with indirect air function, adjustable via remote control
Model:
Series: Artcool Gallery PHOTO WiFi – with R32 refrigerant gas
Indoor Unit Model:
Outdoor Unit Model: A09GA1.U18
Type: Heat pump
Power: 9000 BTU
Energy Efficiency:
Seasonal Efficiency:
SEER: 7.3
SCOP (average climate zone): 4.3
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A+
Seasonal energy consumption (kWh/year): Cooling 124, Heating 911
Performance:
Cooling capacity (kW): 2.6 (0.89 / 3.7)
Heating capacity (kW): 3.3 (0.89 / 4.1)
Indoor unit sound pressure (dB(A)): 42/20
Outdoor unit sound pressure (Max dB(A)): 53/51
Sound power (U.E.): 62
Cooling power consumption (kW): 0.600
Heating power consumption (kW): 0.808
Electrical Data:
Power supply (V/Hz/): 230/1/50
Features:
Refrigerant gas: R32 / 800 gr
Pipe diameter (liquid / gas): 6.35 (1/4′) / 9.52 (3/8′) mm
Max piping length with refrigerant charge: 20 m
Max height difference (outdoor unit above): 7 m
Dimensions & Weight:
Indoor unit (HxWxD) (mm): 652 x 652 x 158 ; 20 kg
Outdoor unit (HxWxD) (mm): 770 x 545 x 288 ; 33.4 kg
Product Code: + A09GA1.U18
