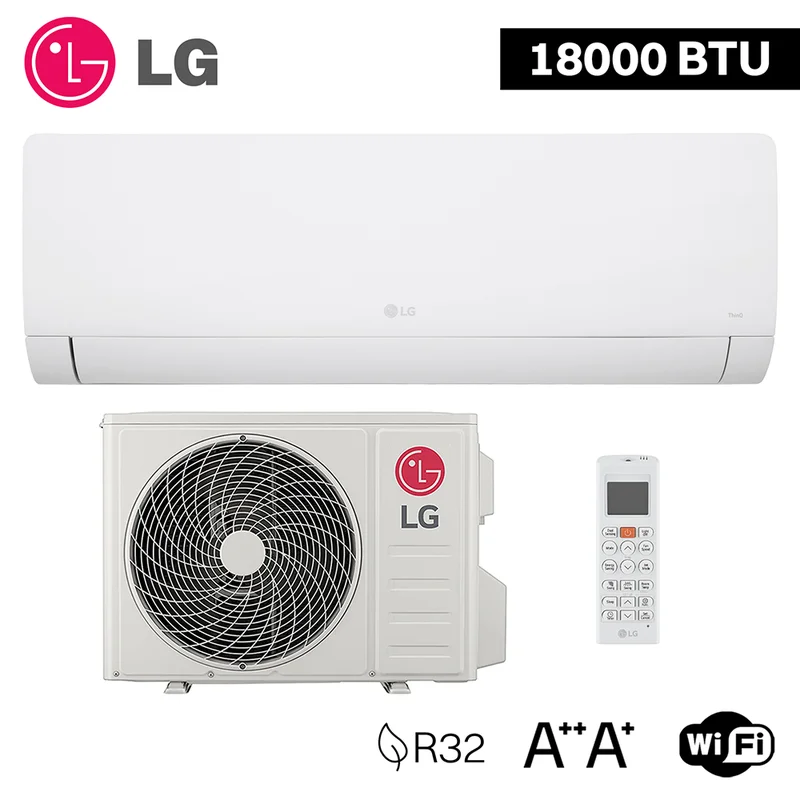

LG LIBERO WZ mono split 18000 btu 5.0 kw a++/a+ wifi matte white General features:
Mono split heat pump unit 18000 btu, ideal for air conditioning medium-sized environments with a single unit.
Inverter technology with high-efficiency r32 gas, energy class a++ in cooling and a+ in heating.
Modern matte white design with compact and silent indoor unit, designed for residential installations.
Complete system for cooling, heating and dehumidification (1.5 l/h), with advanced electronic consumption management.
Wi-fi ready (depending on configuration) for smart control via app and integration in advanced home systems.
Model:
Series: Lg libero wz
Indoor unit model and btu: WZ18AWN.SNU1 18000 btu (nominal capacity 5.05 kw in cooling)
Outdoor unit model: WZ18AWU.SUU1
Type: Air/air mono split inverter heat pump
Energy efficiency:
Seasonal efficiency:
Seer / scop (average climate): Seer 6.1 / scop 4.0
Energy efficiency class (cooling): A++
Energy efficiency class (heating): A+
Seasonal energy consumption kwh/year: 293 kwh/year in cooling; 1330 kwh/year in heating
Performance:
Cooling capacity (kw): Min 1.50 nominal 5.05 max 5.30 (p design c 5.1 kw)
Heating capacity (kw): Min 1.50 nominal 5.10 max 6.00 (p design h 3.8 kw)
Sound pressure indoor unit max-min (db(a+1): Cooling 31 (sleep) 48 (high/max); heating 30 (min) 49 (high/max)
Sound pressure outdoor unit max-min (db(a+1): 55 db(a+1) in high cooling; 55 db(a+1) in high heating (minimum values not declared)
Power input cooling kw: 0.33 1.563 2.34 (minnommax)
Power input heating kw: 0.34 1.375 2.52 (minnommax)
Dehumidification: 1.5 l/h
Electrical data:
Power supply ( / v /hz) : 1 / 220240 / 50
Technical specifications:
Refrigerant gas : R32 (pre-charge 780 g up to 7.5 m; gwp 675; t-co eq 0.527; addition 16 g/m after 5 m)
Pipe diameter liquid / gas (inches): Liquid 1/4″ (6.35 mm); gas 3/8″ (9.52 mm); condensate drain 0.85″ (21.5 mm)
Air flow max (power) m³/min: 34 m³/min (outdoor unit, high speed)
Maximum pipe length with standard charge: 7.5 m (factory pre-charge)
Maximum pipe length with additional charge: 15 m (maximum length odu/idu)
Maximum height difference (outdoor unit above): 10 m (elevation odu/idu max)
Operating limits (outdoor temperature): Cooling from -15 to 48 °cdb; heating from -15 to 24 °cwbcdb
Dimensions and weight:
Indoor unit without packaging hxlxp (mm) and weight (kg) without packaging: 309 × 913 × 203.5 mm; 9.3 kg
Outdoor unit dimensions hxlxp (mm) and weight (kg) without packaging: 602 × 863 × 349 mm; 30 kg
Product code: WZ18AWN.SNU1+WZ18AWU.SUU1
