Descrizione

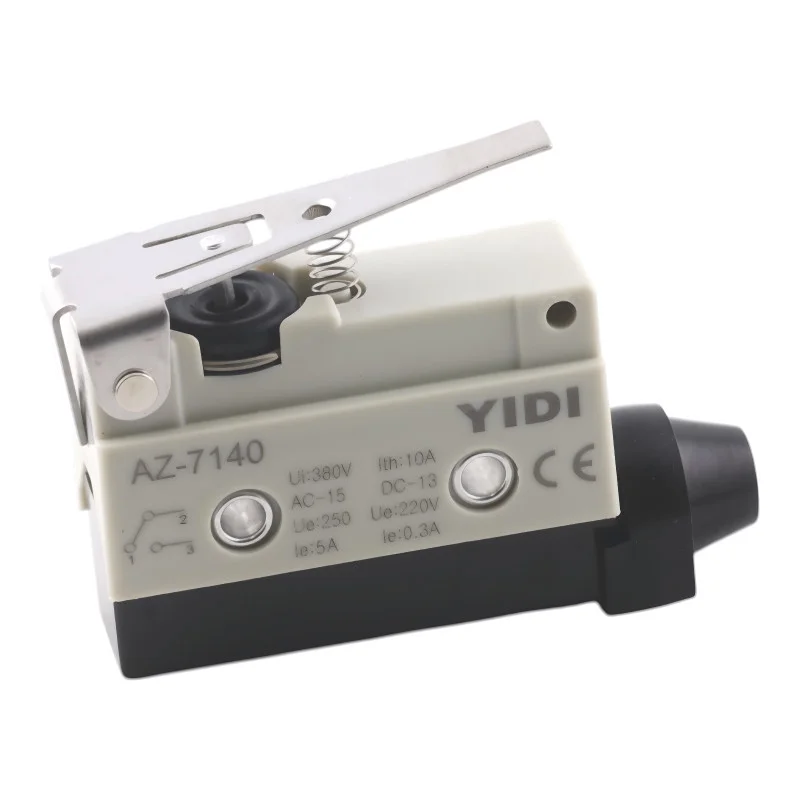

The AZ-7140 mechanical lever switch is designed for switching and sensing end positions in industrial and automation applications. It is used as a limit switch to detect movement, position or presence of mechanical parts where repeatable switching and simple mounting are required.
Technical specifications
Designation: AZ-7140
Type: limit switch with lever
Rated current: 10 A
Rated voltage: 250 V AC
Contacts: NO, NC
Control: mechanical lever
Functions and features
Mechanical lever control for sensing end positions and movement
Suitable for switching AC voltage in common industrial circuits
Design designed for repeated switching in automation assemblies
Ideal for
End stops and position sensing in single-purpose machines
Automation and control systems
Detection of the position of covers, doors, slides and mechanisms
Package contents
1x limit switch AZ-7140
Why choose this product?
Standard industrial microswitch design with lever control
Rated load 10 A at 250 V AC for common switched circuits
Suitable as a limit switch for mechanical position detection
Installation and operating instructions
When installing, ensure that the switch is securely attached and the lever is positioned correctly relative to the controlled element.
Make the connection with the power supply disconnected and with due regard to the wire sizing and fuse protection.
For long-term reliable operation, avoid permanent overloading and inappropriate mechanical stress on the lever.
Safety notice
The product operates at 250 V AC, incorrect installation may result in electric shock
Installation and service should only be carried out by a suitably qualified person.
Before working on the wiring, always disconnect the power supply and verify that it is de-energized.
