Descrizione

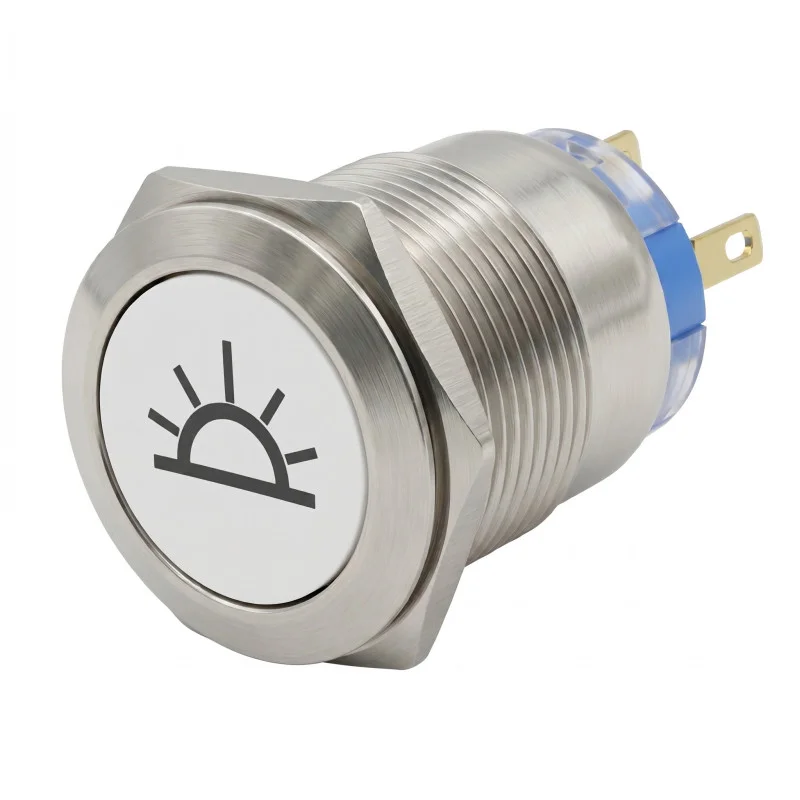

The metal push-button switch AM2416 with latching is designed for controlling electrical circuits and for installations where a visible red LED backlight is required. The design with a metal body and IP65 protection allows use in control panels, electrical installation assemblies, and interior lighting while observing the specified electrical parameters.
Technical specifications
Product type: metal push-button switch with LED backlight
Switching type: latching
Backlight color: red
Maximum voltage for LED backlight: 12 V
Maximum switched load: 250 V / 5 A
Contact type: NO, NC
Mounting diameter: 19 mm
Front part diameter: 22 mm
Protection: IP65
Design: silver metal body
Functions and features
The latching mechanism allows maintaining the closed or open state after pressing.
NO and NC contacts allow connection for switching and breaking functions according to the circuit design.
The red LED backlight serves for visual signaling or orientation of the control element.
The metal design is suitable for mounting in control panels and front plates.
IP65 protection provides protection against dust and against water jets when properly mounted.
Ideal for
Control panels of electrical devices.
Switching and signaling in interior lighting.
Control and auxiliary circuits with a requirement for a latching switch.
Panel installations where a metal button with backlight is required.
Package contents
1x Metal switch with red backlight
Why choose this product
The product combines latching switching, LED backlight, and NO and NC contacts in one panel element.
The specified parameters allow use in electrical circuits with a clearly defined limit of the switched load.
The mounting diameter of 19 mm and the front diameter of 22 mm facilitate integration into panel applications corresponding to these dimensions.
IP65 protection is suitable for environments where increased protection of the front part of the switch is required.
Installation and operation instructions
Before mounting, verify the compliance of the NO and NC contact connection with the required function of the controlled circuit.
Connect the LED backlight only to a voltage not exceeding 12 V.
The switched load must not exceed the value of 250 V / 5 A.
To maintain IP65 protection, the switch must be fitted into a suitably prepared panel and properly tightened.
Safety warnings
When used in AC networks with a voltage up to 250 V, there is a risk of electric shock.
Mounting into circuits with mains voltage may only be performed by a person with appropriate electrical qualifications.
Before installation, connection, or maintenance, the circuit must be disconnected from the power supply.
Incorrect connection of contacts or LED backlight can cause a short circuit, overheating, or damage to the switch.
Do not use the product outside the specified electrical limits.
