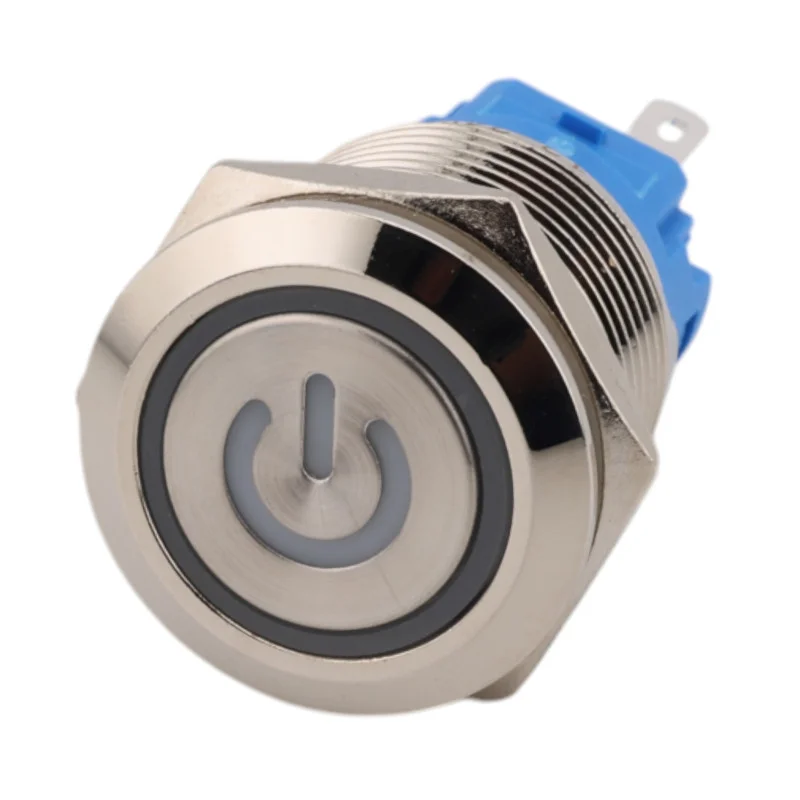

Metal pushbutton switch for panel mounting with a flat head and integrated LED indication in a ring. It is intended for applications where a mechanically resistant design, clear status signaling and standard mounting in a 19 mm hole are required. The design is in black with an ON/OFF pictogram, supplied without connecting wires.
Technical specifications
Type: metal push button switch (panel)
Model number: HY-NY-19
Color: silver
Arrest: no
Mounting hole: 19 mm
Thread: M19x1
Contacts: 1NO1NC
Max current: 4 A
Max. voltage: 265 V
Protection level: IP65
Indication: LED ring (Ring LED) + pictogram
LED color variants (depending on design): white, yellow, red, blue, green
LED voltage (depending on version): 36 V, 1224 V or 110220 V
Contact material: silver contacts
Body material: metal housing, nickel-plated sheath (copper)
Base: self-extinguishing design
Working temperature: -25 °C to +80 °C
Connection: terminals without wires
Marking on the forehead: ON/OFF pictogram
Functions and features
Flat head with illuminated ring for clear indication
Metal design suitable for mechanically stressed installations
Panel mounting with nut, standard size 19 mm
1NO1NC contact combination for flexible wiring
IP65 protection for use in dusty environments and when sprayed with water
Ideal for
Machine and equipment control panels
Industrial cabinets and enclosures
Power and function control with status indication requirement
Automation, workshop fixtures and test benches
Package contents
1x panel button HY-NY-19 (without connecting wires)
Why choose this product?
Standard 19 mm mounting and M19x1 thread for common panel applications
Integrated LED indication in a ring, selectable voltage and LED color options depending on the design
Durable metal housing and IP65 protection for more demanding operating conditions
1NO1NC contact combination for universal use in control circuits
Installation and operating instructions
Before installation, verify the hole diameter is 19 mm and there is sufficient space for the switch body and terminals.
Tighten the nut appropriately to avoid damaging the panel or thread.
Before connecting, verify the required LED voltage and the correct assignment of the NO/NC terminals according to the marking on the switch body.
Safety notice
There is a risk of electric shock when working with voltages of 220-250 VAC or higher than 60 VDC. Installation and service should only be performed with the power disconnected and by a qualified person.
Observe the insulation distances, fuses and requirements of the relevant standards for the application.
Wiring diagram
