Descrizione

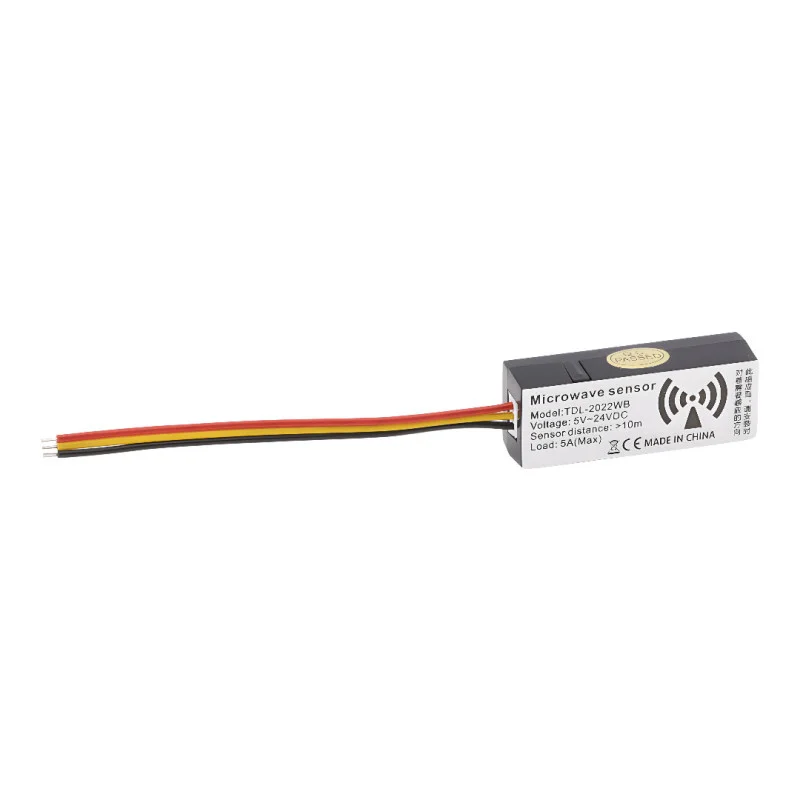

The TDL-2022WB microwave radar sensor is a compact contactless switching module designed for 360° motion detection. Thanks to microwave technology, it offers stable and reliable operation even in environments where conventional PIR sensors fail (glass covers, plastic boxes, thin walls). The module is suitable for switching LED lighting, power circuits and other DC devices in a wide voltage range.
Technical specifications
Sensor type: microwave radar motion switch
Model: TDL-2022WB
Operating voltage: 5-24 V DC
Output current: 5 A
Load: 25W (5V DC) / 60W (12V DC) / 80W (24V DC)
Detection distance: 8-10 m
Scanning angle: 360°
Switching time: 30 s
Light sensor: no
Control element: MOSFET
Case dimensions: 50 × 18 × 13 mm
PCB dimensions: 47 × 15 × 7 mm
Protection: IP20
Weight: 12g
Functions and features
Microwave motion detection with full 360° coverage
Stable output current of 5 A while maintaining input voltage
Ability to switch higher loads without a mechanical relay
Compact dimensions suitable for concealed installation
Reliable operation even when covered with plastic or thin non-metallic material
Ideal for
Automatic switching of LED lighting
Industrial and technical applications
Concealed installation in plastic covers
Control of power circuits in DC systems
Corridors, warehouses, display cases and technical spaces
Package contents
1× microwave radar motion sensor TDL-2022WB
Why choose this product?
Wide power supply range 5-24 V DC
Higher reliability compared to PIR sensors
360° detection without blind spots
High load capacity up to 80 W at 24 V DC
Compact dimensions and easy installation
