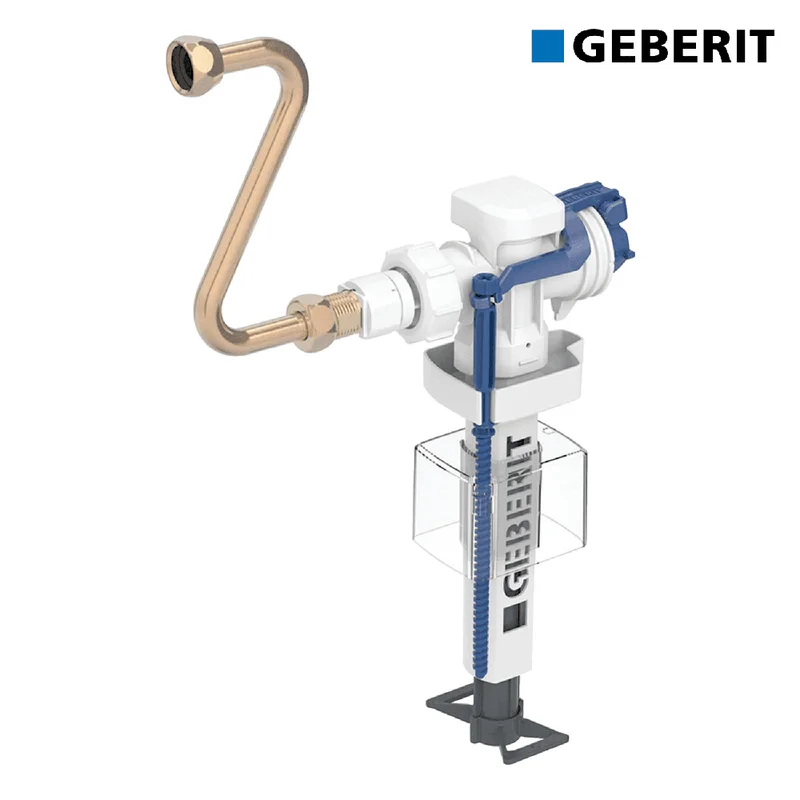

New Geberit 240.784.00.5 lateral 3/8” float valve Description:
The Geberit 240.784.00.5 lateral float valve is a professional replacement component designed to ensure fast, quiet and reliable filling of flushing cisterns. Belonging to the Type 383 series, it represents an ideal solution for those who need a product compatible with a wide range of Geberit cisterns, both concealed and exposed, ensuring constant performance over time. Thanks to the 3/8” lateral water connection, installation is simple and immediate even in confined spaces, while the brass shank ensures a strong and corrosion-resistant connection. The adjustable filling height allows the operation of the cistern to be adapted to the specific needs of the system, improving system efficiency and reducing water waste. Quiet operation compliant with group I (DIN 4109) guarantees superior acoustic comfort, making the product particularly suitable for domestic bathrooms, accommodation facilities and professional environments. The certified flow rates and compatibility with drinking water confirm the reliability of the device even under intensive use conditions. The Geberit 240.784.00.5 float valve is also designed to replace the previous model 240.784.00.1, offering an improved technical upgrade and full compatibility with numerous Geberit systems, including Sigma, Omega, Kappa, Twinline, UP300, UP720 and other models indicated by the manufacturer. An essential replacement part to keep the flushing system efficient and extend the life of the flushing cistern.
Features:
3/8” lateral water connection for quick and compatible installations
Adjustable filling height for precise adaptation to the system
Quiet operation compliant with group I (DIN 4109)
Brass shank for greater resistance and durability
Compatible with concealed and exposed Geberit cisterns
Designed for drinking water and continuous use
Official Geberit replacement part for reliable performance over time
Specifications:
Product code: 240.784.00.5
Type: Type 383 float valve
Water connection: lateral 3/8”
Shank material: brass
Dynamic pressure: 0.110 bar
System noise: 7 dB(A) at 3 bar, 13 dB(A) at 5 bar
Maximum water temperature: 25 °C
Maximum storage temperature: 40 °C
Flow rate: 0.06 l/s at 0.5 bar; 0.16 l/s at 3 bar
Design flow rate: 0.09 l/s
Cistern compatibility: Sigma 12, Sigma 8, UP300, UP720, Omega 12, Twinline 12, Twinline 8, Unica, Kappa 15 and other models indicated by the manufacturer
Supplied with: filter for union / reinforced flexible hose
Replaces the previous model: 240.784.00.1
Product code: 240.784.00.5
