Descrizione

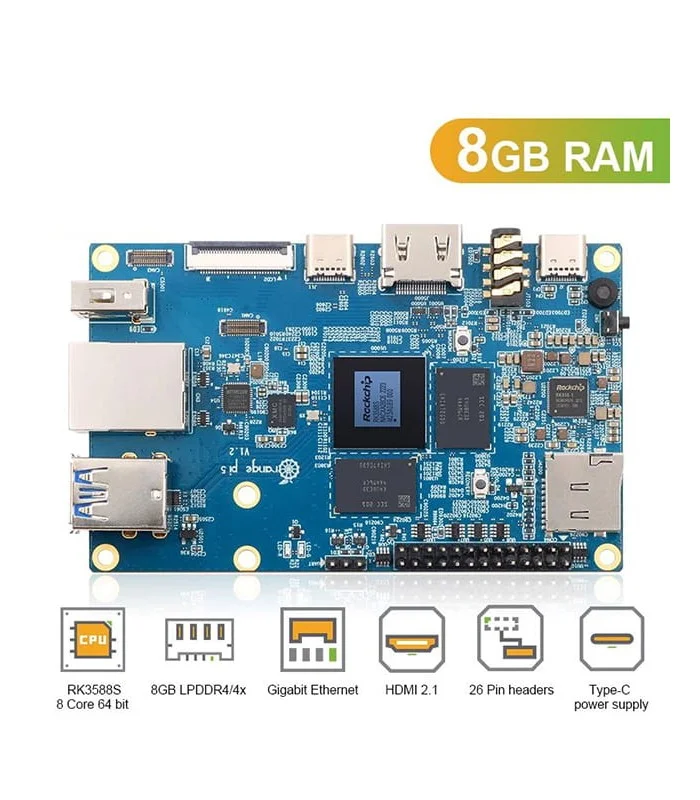

Orange Pi 5 utilizza il processore Rockchip RK3588S di nuova generazione a 8 core a 64 bit, quad-core A76 + quad-core A55, con design del processo a 8 nm, frequenza principale fino a 2,4 GHz, GPU ARM Mali-G610 integrata, 3D ad alte prestazioni incorporato /Modulo di accelerazione delle immagini 2D, NPU integrato con potenza di calcolo 6Tops, con 4 GB/8 GB/16 GB (LPDDR4/4x) e capacità di elaborazione del display fino a 8K.
Orange Pi 5 offre numerose interfacce, tra cui uscita HDMI, interfaccia GPIO, M.2 PCIe2.0, Type-C, porta LAN Gigabit, 2*USB2.0, 1*USB3.0, ecc.; Può essere ampiamente utilizzato in tablet, edge computing, intelligenza artificiale, cloud computing, AR/VR, sicurezza intelligente, casa intelligente e altri campi, coprendo vari settori dell’AIoT.
Orange Pi 5 supporta Orange Pi OS (Droid), il sistema operativo ufficiale sviluppato da Orange Pi, così come Android12 e Debian11.
Hardware specification
SoC:
Rockchip RK3588S (8nm LP process)
CPU:
– 8-core 64-bit processor
– Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
– Arm Mali-G610 MP4 Odin GPU
– Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
– 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB (LPDDR4/4x)
Memory:
– QSPI Nor FLASH 16MB
– MicroSD (TF) Card Slot
– M.2 M-KEY Socket
USB:
– USB3.0 × 1
– USB2.0 × 2
– Type-C (USB3.1) ×1
Video Output:
– HDMI2.1, up to 8K @60Hz
– DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
– 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera:
– MIPI CSI 4Lane
– 2 * MIPI D-PHY RX 4Lane
Audio: CODEC: ES8388
– 3.5mm headphone jack audio input/output
– Input: Onboard MIC
– HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
– Support PCIe NVMe SSD
– Support custom PCIe Wi-Fi6+BT5.0 module
Button:
– 1×MaskROM key
– 1×Recovery key
– 1×On/Off key
Power Source: Support Type-C power supply, 5V @ 4A
LED:
– Power indicator: red
– Status indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid)?Orangepi OS(Arch)?Ubuntu?Debian?Android12
Interface definition:
Product size: 62 mm × 100mm
Weight: 46g
