Descrizione

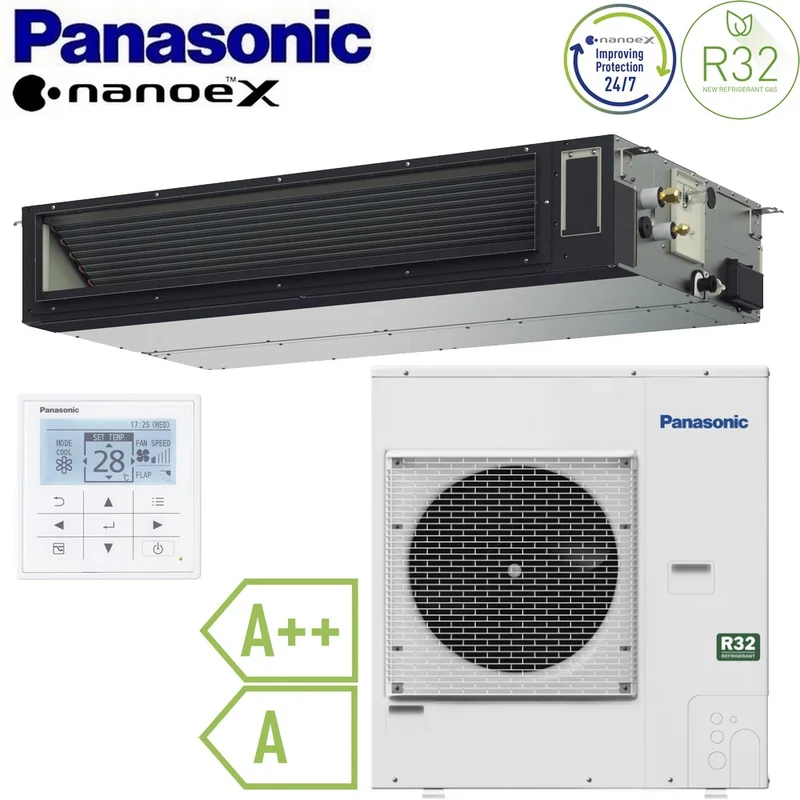

KIT-140PF3Z5 – PANASONIC 48000 BTU 14.0 kW R32 Ducted Single Split Air Conditioner
INVERTER – heat pump – CLASS A++ horizontal/vertical installation – wall controller included
Features:
The new models have been completely redesigned to ensure flexible installation for all types of commercial and residential environments. The units can be installed either vertically or horizontally, and the air intake direction (rear or bottom) can be adjusted by simply repositioning a cover panel.
With a height of only 250 mm, suspended ceilings are no longer a problem. These units can be easily installed in lower-than-standard ceilings.
PF3 models can operate under an external static pressure range from 10 to 150 Pa. They are quiet units with minimum sound levels of just 22 dB(A), thanks to improved fan design ensuring smoother airflow for low-noise operation.
Highlights of the new line:
– Flexible installation: horizontal / vertical
– Only 250 mm in height
– Maximum external static pressure: 150 Pa
– Selectable air intake position (rear / bottom)
– Improved drainage tray, suitable for horizontal and vertical installation
– Drain pump included
– Nanoe X (Mark 2 = 9.6 trillion OH radicals/sec) standard
– Compatible with new optional CONEX controls: CZ-RTC6, CZ-RTC6BL (Bluetooth), CZ-RTC6BLW (Bluetooth + Wireless)
– Eco-friendly refrigerant R32
– Ducted units controllable via KNX, EnOcean, and Modbus
– Eco mode for 20% energy saving
– Compact indoor units (only 200 mm height)
– Weekly timer with up to 42 events per week
– Simplified control mode for fault detection
– Drain pump included
– Wall-mounted wired controller model CZ-RTC5B included
Technical Specifications:
Model:
– Indoor unit catalog code: S-1014PF3E
– Outdoor unit catalog code: U-140PZ3E5
– Included wall controller code: CZ-RTC5B
– Power (BTU): 48000
Energy Efficiency:
– SEER/SCOP (%/%): 252.2 / 140.6
– Energy Class (Cooling): A+
– Energy Class (Heating): A
Performance:
– Nominal cooling capacity (kW): 13.4
– Nominal heating capacity (kW): 9.5
– Indoor unit sound pressure (dB-A): 39/35/29
– Outdoor unit sound pressure (dB-A): 56/56
Electrical Data:
– Power supply: 230-230-240 V
Features:
– Refrigerant gas: R32
Guaranteed Operating Range:
– Cooling °C: -10 ~ +43
– Heating °C: -15 ~ +24
Dimensions:
– Indoor Unit HxWxD (mm): 250 x 1400 x 730 ; 39 kg
– Outdoor Unit HxWxD (mm): 996 x 980 x 370 ; 87 kg
Product code: KIT-140PF3Z5
