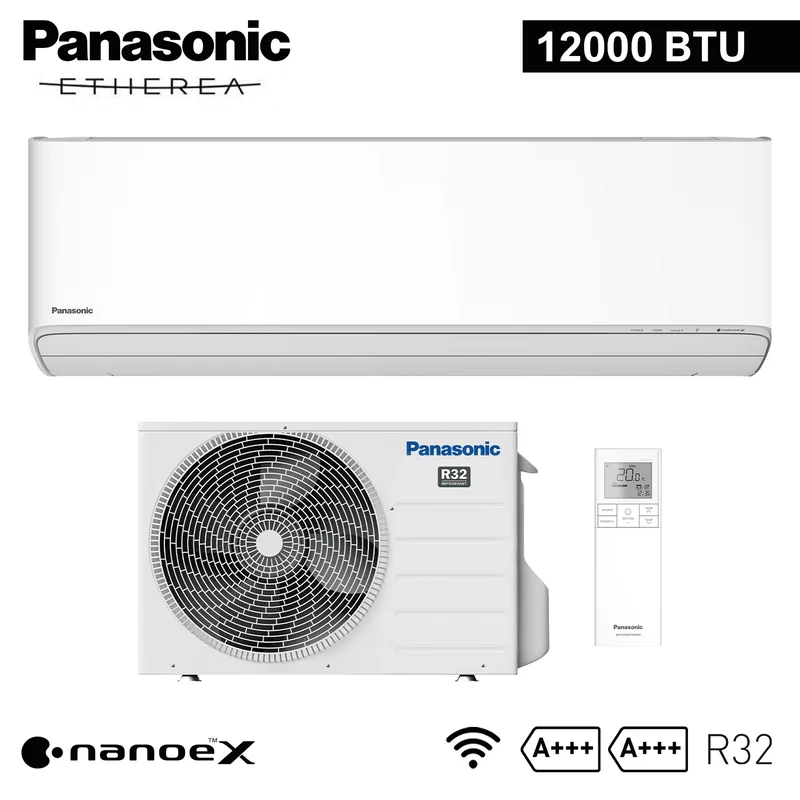

PANASONIC mono split air conditioner ETHEREA C white 12000 btu A+++/A+++ General features:
Integrated nanoe X Mark 3 technology to improve air quality.
A+++ energy class in cooling and A+++ in heating (SCOP average climate).
Ultra-silent operation with only 19 dB(A) in Quiet mode.
Aerowings 2.0 for more even air distribution.
Integrated Wi-Fi, compatible with Panasonic Comfort Cloud, Google Home and Alexa.
High-efficiency air-to-air heat pump.
Compact and elegant design, white colour.
Guaranteed operation down to 20 °C in heating mode.
Model:
Series: Panasonic ETHEREA C
Indoor unit model and Btu: CS-Z35CKEW 12000 BTU
Outdoor unit model: CU-Z35CKE
Type: Air-to-air monosplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate):
SEER: 9,50
SCOP: 5,20
Energy efficiency class (cooling): A+++
Energy efficiency class (heating): A+++
Seasonal energy consumption kWh/year:
Cooling: 129 kWh/a
Heating: 781 kWh/a
Performance:
Cooling capacity (kW): 3,50 (0,85 4,20)
Heating capacity (kW): 4,00 (0,80 5,50)
Indoor unit sound pressure MAXMIN (dB(A)):
Cooling: 42 / 28 / 19
Heating: 43 / 33 / 19
Outdoor unit sound pressure MAXMIN (dB(A)):
Cooling / Heating: 48 / 50
Power input cooling (kW): 0,82 (0,20 1,16)
Power input heating (kW): 0,88 (0,18 1,46)
Electrical data:
Power supply ( / V / Hz): 1 / 230 V / 50 Hz
Technical specifications:
Refrigerant gas: R32 0,81 kg (0,55 t CO eq.)
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Max air flow (Power) m³/min:
Indoor unit: 12,7 / 14,4 (cooling/heating)
Outdoor unit: 29,8 / 29,8
Maximum piping length with standard charge: 7,5 m
Maximum piping length with additional charge: 15 m (additional 10 g/m)
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature):
Cooling: 10 ~ +43 °C
Heating: 20 ~ +24 °C
Dimensions and weight:
Indoor unit (HxLxP) and weight: 295 × 870 × 229 mm 11 kg
Outdoor unit (HxLxP) and weight: 542 × 780 × 289 mm 31 kg
Product code: KIT-Z35-CKE
