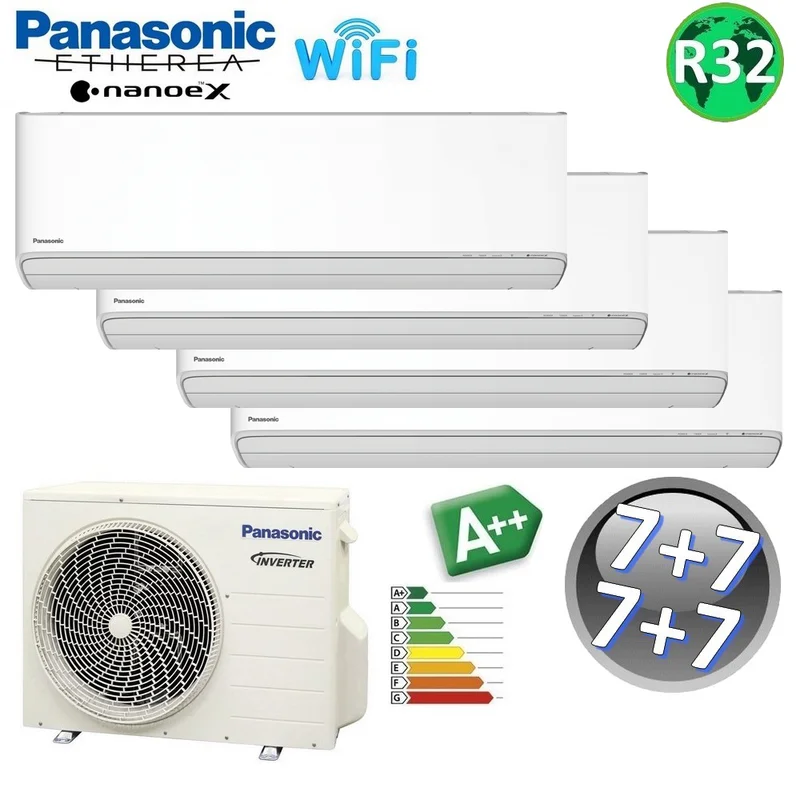

PANASONIC ETHEREA R32 quad split air conditioner 7+7+7+7 btu A++ WIFI NanoeX General features:
Super compact quad split system with Inverter technology and eco-friendly R32 refrigerant
Panasonic TZ indoor units, designed for installation in reduced spaces
Integrated NanoeX purification technology to improve air quality
Integrated WiFi module for remote control via dedicated app
Heat pump operation for year-round cooling and heating
Quiet operation and high energy efficiency
Model:
Series: Panasonic TZ R32 Super Compact
Indoor unit model and Btu: 4 × CS-TZ20CKEW 7000 BTU
Outdoor unit model: CU-4Z68CBE
Type: Inverter Quad Split Heat Pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 8,20 / 4,60
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 290 (cooling) / 1704 (heating)
Performance:
Cooling capacity (kW): 6,80 (min 1,90 max 8,00)
Heating capacity (kW): 8,50 (min 1,70 max 10,40)
Indoor unit sound pressure MAX-MIN (dB(A+1): 42 / 20 (for each CS-TZ20CKEW)
Outdoor unit sound pressure MAX-MIN (dB(A+1): 51 / 53
Cooling input power kW: 1,74 (min 0,27 max 2,37)
Heating input power kW: 2,00 (min 0,36 max 2,86)
Electrical data:
Power supply ( / V /Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 (quantity 2,25 kg CO eq. 1,519 t)
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Max air flow (Power) m³/min: data not specified
Maximum piping length with standard charge: 30 m
Maximum piping length with additional charge: up to 60 m (total range 660 m)
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature): Cooling -10~+46 °C / Heating -15~+24 °C
Dimensions and weight:
Indoor unit without packaging HxWxD (mm) and weight (Kg) without packaging: CS-TZ20CKEW: 290 × 779 × 209 mm 8 kg (for each unit)
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 795 × 875 × 320 mm 64 kg
Product code: KIT-Z20202020(68)
