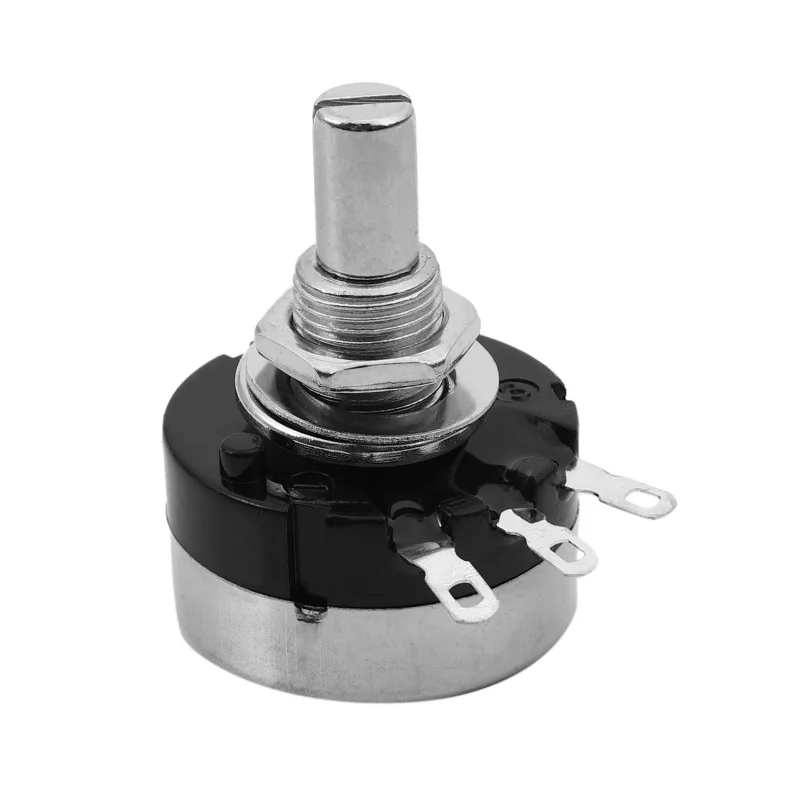

The RV30YN20S potentiometer is a rotary variable resistor designed for continuous resistance adjustment in electronic circuits, control elements, power applications and control systems. The design with a mounting thread, shaft and three terminals allows easy integration into panel and built-in devices. The product is available in a wide range of resistance variants, which makes it easy to choose the appropriate version for a specific application.
Technical specifications
Model: RV30YN20S
Component type: rotary potentiometer
Design: panel, with shaft and mounting thread
Number of outlets: 3
Characteristics: linear, designation B
Rated power: 3W
Resistance options available: 500 , 1 k, 2 k, 5 k, 10 k, 20 k, 50 k, 100 k, 250 k, 500 k, 1 M
Variant designations: 500R, B102, B202, B502, B103, B203, B503, B104, B254, B504, B105
Tolerance: 1%
Construction: single-turn design
Functions and features
Continuous mechanical resistance adjustment via rotating shaft
Linear waveform suitable for control and adjustment circuits
Higher 3W load capacity for use in applications with higher power demands than conventional miniature potentiometers
Metal shaft and threaded mount for fixed panel mounting
Standard three-terminal connection for use as a variable resistor or voltage divider
Wide range of resistance values for various electronic designs and service applications
Ideal for
Regulation of signal levels and voltages in electronic circuits
Adjustment and calibration elements in industrial and hobby electronics
Power supply and power circuits requiring a more robust potentiometer
Panel controls for instruments and electronic devices
Spare parts for repair and maintenance of devices using RV30 series potentiometers
Package contents
1x potentiometer RV30YN20S in the selected resistance variant
Why choose this product?
Verified model number RV30YN20S
Availability of multiple resistance values within one product line
Linear characteristic suitable for technical and regulatory applications
Mechanically robust design for panel mounting
Rated power of 3 W allows use even in more demanding circuits
Installation and operating instructions
When selecting a resistor variant, consider the desired control range and the electrical stress in the circuit.
For proper operation, connect the outer terminals as fixed ends of the resistance track and the middle terminal as a runner.
When mounting in a panel, ensure a mechanically secure fit using the threaded part of the potentiometer.
Do not exceed the rated power of the component to avoid overheating the resistance path and shortening its service life.
