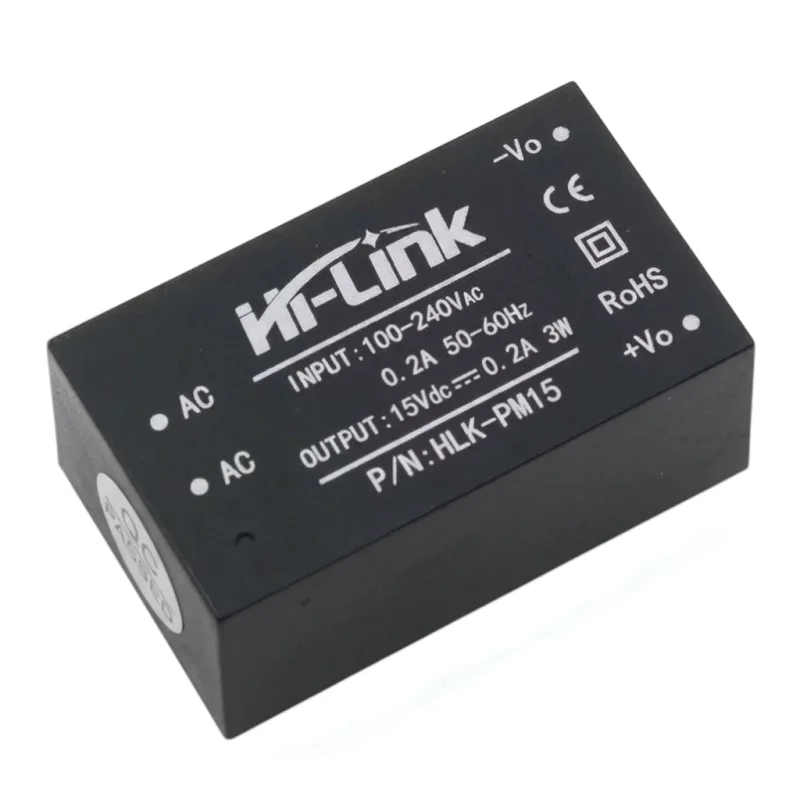

The Hi-Link HLK-PM15 AC-DC module is used to directly convert AC mains voltage to a stabilized DC voltage of 15 V. It is intended for installation in electronic devices, control circuits and power supply parts of compact devices where a small isolated power supply with board mounting is required.
Technical specifications
Model: HLK-PM15
Type: AC-DC power module
Output voltage: 15V DC
Output current: 0.2A
Rated power: 3W
Input voltage: 100-240V AC
Input voltage range: 90-264V AC
Input frequency: 50-60 Hz
Maximum input current: 0.2 A
Number of outlets: 4
Pin 1: AC
Pin 2: AC
Pin 3: -Vo
Pin 4: +Vo
Module dimensions: 34 × 20.2 × 15.4 mm
Weight: up to 20 g
Functions and features
Isolated AC-DC mains converter in a compact molded case.
Wide range input for AC power supply.
Direct mounting on the printed circuit board using leads.
Integrated output short circuit protection.
Integrated output overcurrent protection.
Design designed for installation in equipment with limited space.
Ideal for
Built-in power supply for control and switching circuits.
Power supply parts for home and industrial electronics.
Automation modules, measuring equipment and auxiliary power supply branches of the device.
Projects where conversion of mains voltage to 15 V DC in a compact module is required.
Package contents
1x Hi-Link HLK-PM15 power module
Why choose this product?
Clearly defined output parameters of 15 V DC and 0.2 A.
Wide input mains voltage range for universal use.
Compact design suitable for installation into equipment.
Simple electrical connection via four outlets with separate AC input and DC output.
Integrated protection functions important for the operation of the power section.
Installation and operating instructions
Install the module only in equipment with adequate insulation and protection against touching live parts.
When designing the circuit, it is necessary to correctly distinguish between the AC input terminals and the +Vo and -Vo output terminals.
Mounting on a board and connecting to mains voltage requires professional competence.
When operating, ensure conditions appropriate to the built-in power module and do not exceed the rated output power.
Safety notice
The product operates on a mains voltage of 100-240 V AC. Improper connection may result in electric shock, damage to the device or a short circuit.
The module is not intended for manipulation under voltage.
The device must be disconnected from the power supply before installation, maintenance or measurement.
Do not cover the module with thermal insulation materials and ensure safe operation within the design of the device.
Use the product only as a built-in power module in the corresponding electrical equipment.
