Descrizione

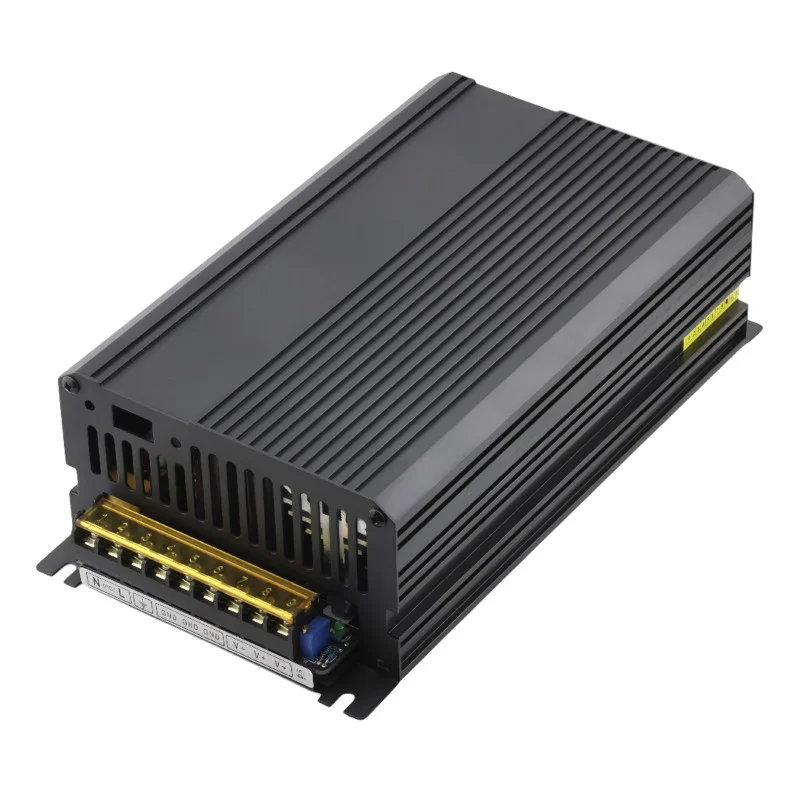

Switched industrial power supply designed for installation or distribution cabinets. This power supply is of industrial design, is covered with a metal frame with IP20 protection, has standard terminal screws for connecting the input mains voltage including a ground wire and three pairs of DC output wires. The power supply has short-circuit protection, overvoltage protection and current overload protection. The industrial power supply is actively cooled. The power supply includes an LED diode that serves to indicate the power supply and also an adjustment trimmer, thanks to which the output voltage of the power supply can be adjusted.
Suitable for example for powering servo motors, home automation, entrance gates and other applications. Always count on a sufficient power reserve (20-25%), the power supply is not suitable for long-term operation at the limit of its power capabilities. You can find more industrial power supplies of other parameters in our offer.
Input voltage: 190-265V AC, 50/60Hz.
Output voltage: 72V DC, max. 20.8A
Overload protection
Surge protection
Short circuit protection
Metal construction
Certificates: CCC / FCC / CE, ROHS
Working temperature: -30~50°C
Ambient humidity: 0~95%
For indoor use only
Size: 240x125x76mm
